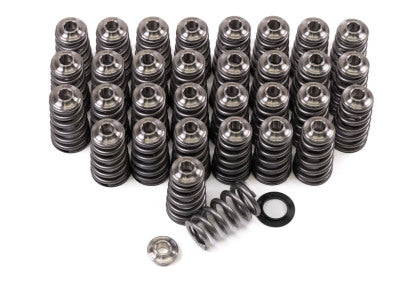

GSC P-D Ford Mustang 5.0L Coyote Gen 3 Conical Valve Spring and Ti Retainer Kit
Roll over image to zoom in Click on image to zoom
GSC P-D Ford Mustang 5.0L Coyote Gen 3 Conical Valve Spring and Ti Retainer Kit

GSC P-D Ford Mustang 5.0L Coyote Gen 3 Conical Valve Spring and Ti Retainer Kit

GSC Power DivisionSKU: 5012

Price:
$782.00 USD

Description

GSC Power-Division High Pressure Ovate Conical Spring kit with Ti Retainer and Spring seats for the Ford Gen 3 Coyote 5.0 For the F150 and Mustang. Also fits Gen 4 Mustang only.

  • Installed: 97 lbs @ 1.621"
  • Open:  295 lbs @ 1.020"

Check your valve spring install heights here



GSC5012 High Pressure Ovate Conical Valve Spring Kit with Ti Retainer and seats for Gen 3/4 Coyote
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure Maximum Valve Lift (in)
Ovate Conical 0.960 1.621 97
 295 lbs @ 1.020 0.600
  • Max boost: 30+ psi
