Description
Complete plug-and-play returnless fuel-pump system for 2018–2023 Redeye, Super Stock, and Demon vehicles.
Compatibility note: This system will not work with standard Hellcats, Trackhawks, Durangos, or vehicles equipped with a 5.7, 6.1, or 6.4 engine.
Our fuel hats are ready for three pumps. The fuel hat comes standard with two high-flow 285 pumps and one high-flow 295 pump. The kit also includes our exclusive FPDM and harness mounting bracket for a factory-like installation.
This system safely supports up to 1,150 whp on E85 with the factory fuel line and fuel rails. It can later be upgraded with our PNP Max Effort Fuel Kit to support more than 1,600 whp.

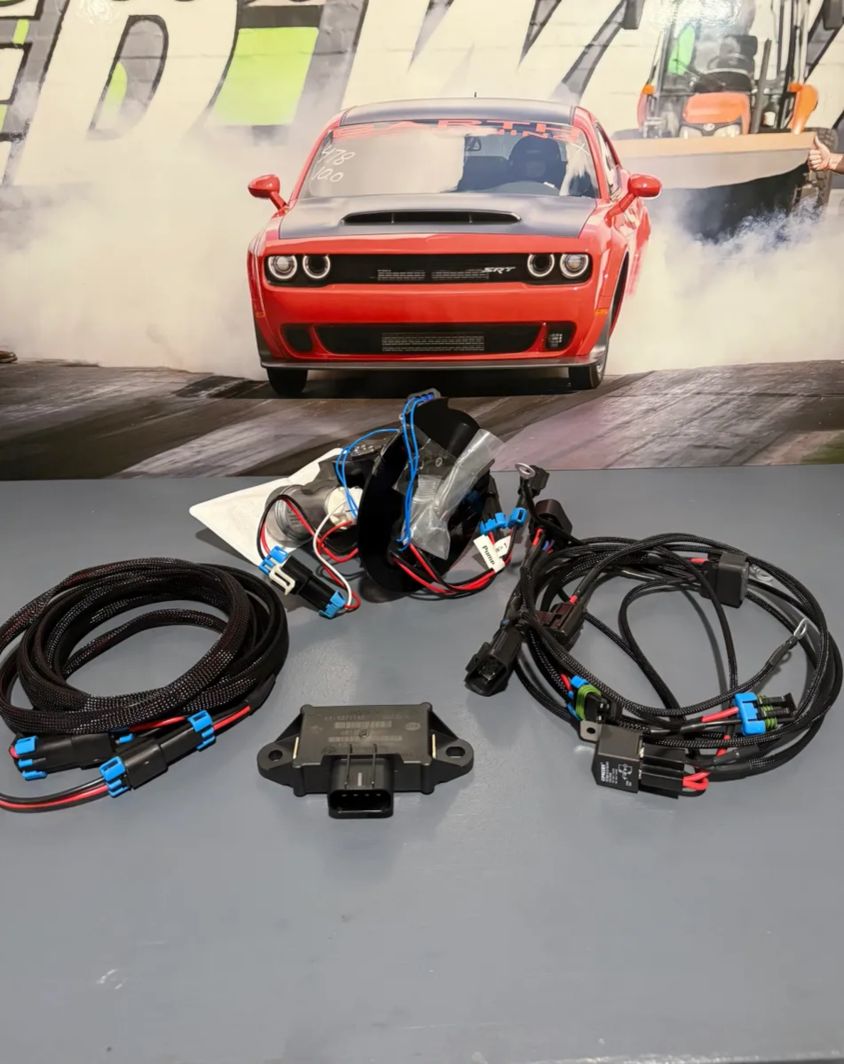

Includes:
- Complete plug-and-play wiring harness
- Two Walbro 525 LPH pumps (Walbro 285 pumps)
- One Walbro 535 LPH pump (Walbro 295 pump)
- One FPDM
- Fuel-level sender
- FPDM mounting bracket
- Zip ties
