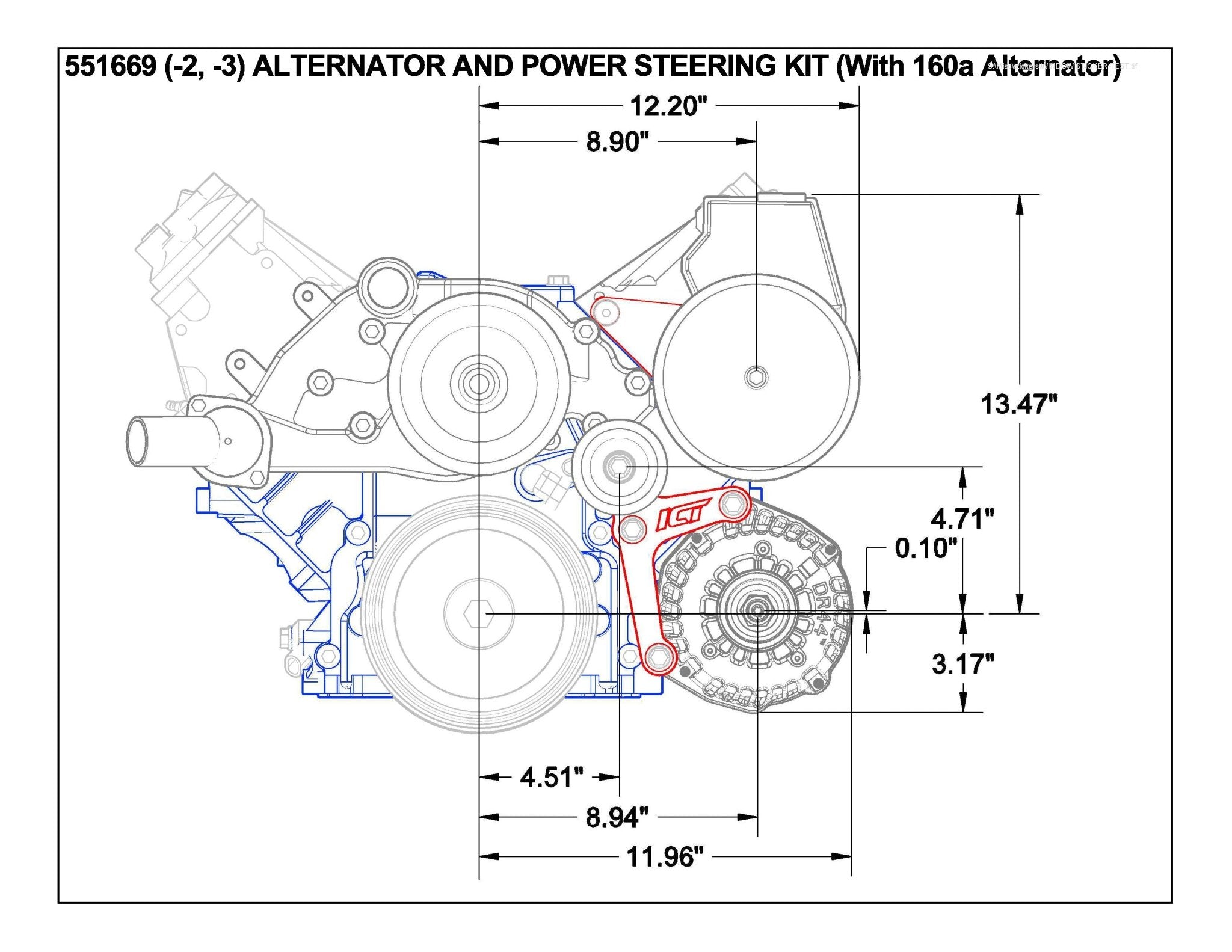

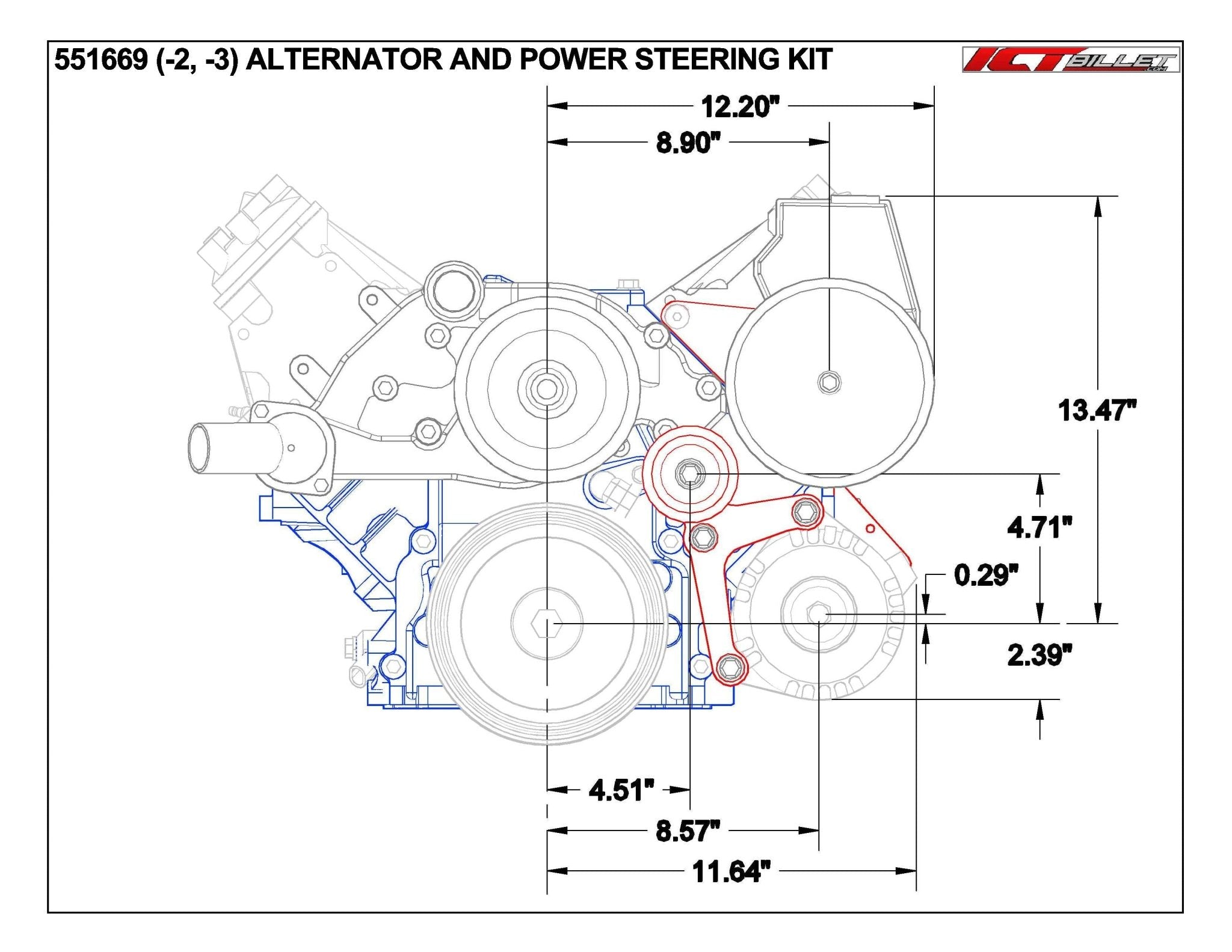

ICT Billet LS Truck OEM Location Alternator / Power Steering Bracket LQ4 LQ9 4.8L 5.3L 6.0L

LS1 Camaro Alternator and Power Steering Pump Bracket Kit

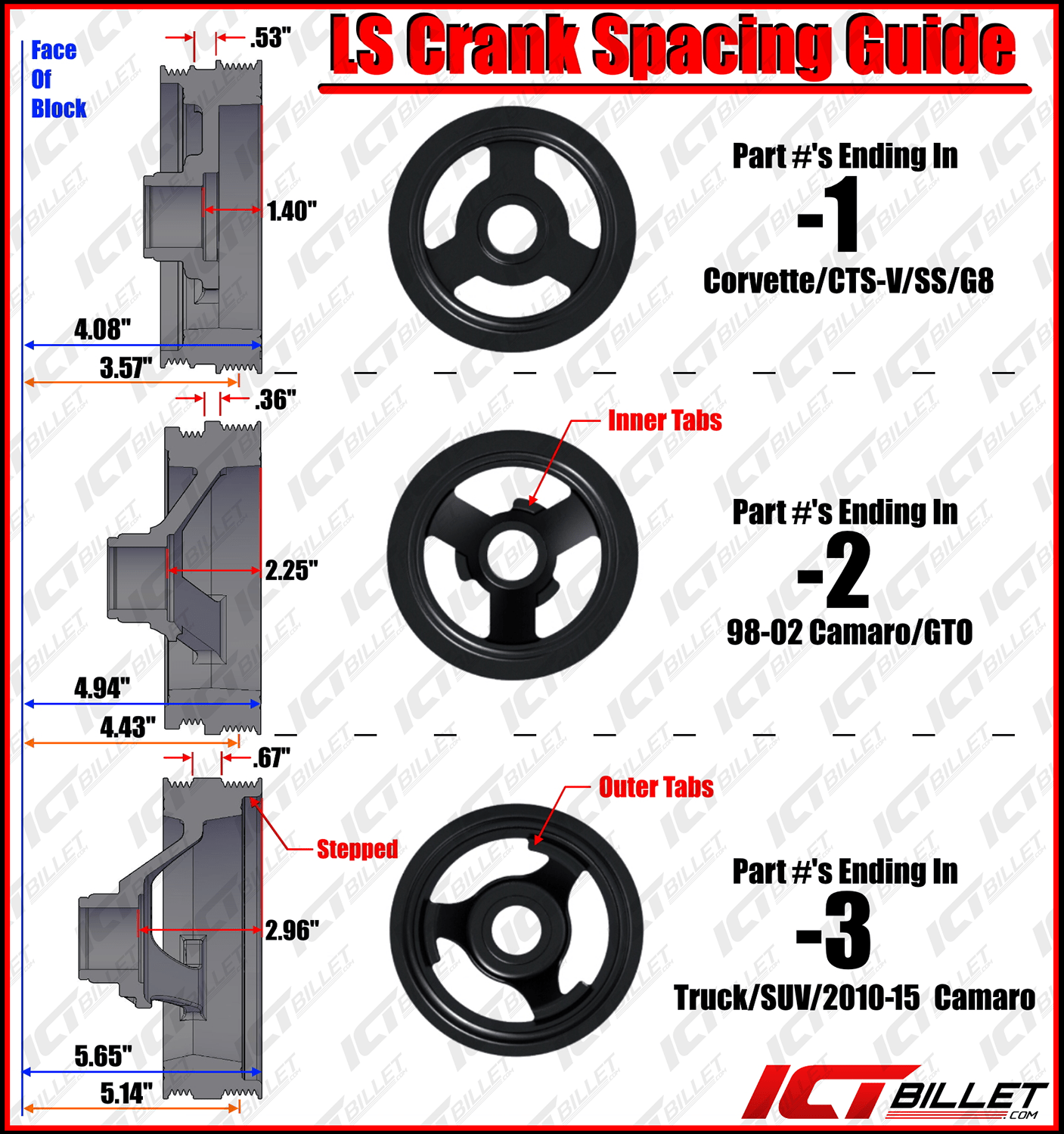

Compatible with 1998-02 LS1 Camaro (GTO any year) crank pulley (ICT # BAL200)

• When using an iron block, we recommend using our front support bracket to add the 3rd mounting point for the alternator bracket SKU 551921-LS01.
• Compatible with 1998-02 LS1 Camaro power steering pump & pulley (ICT # PUM200 & ICT # PUL200)
• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. 145+ alternators do not have the provision for the rear bracket, but can still be used.
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
• **Compatible with: all GM LS series engines

**On "truck" engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445

790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner

955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472LS0-2 Sanden 7176 A/C kit

987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-2 Sanden 508 A/C kit

980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-2 R4 A/C HD kit

These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
