Description
Take Command of Your Load. Corner by Corner.

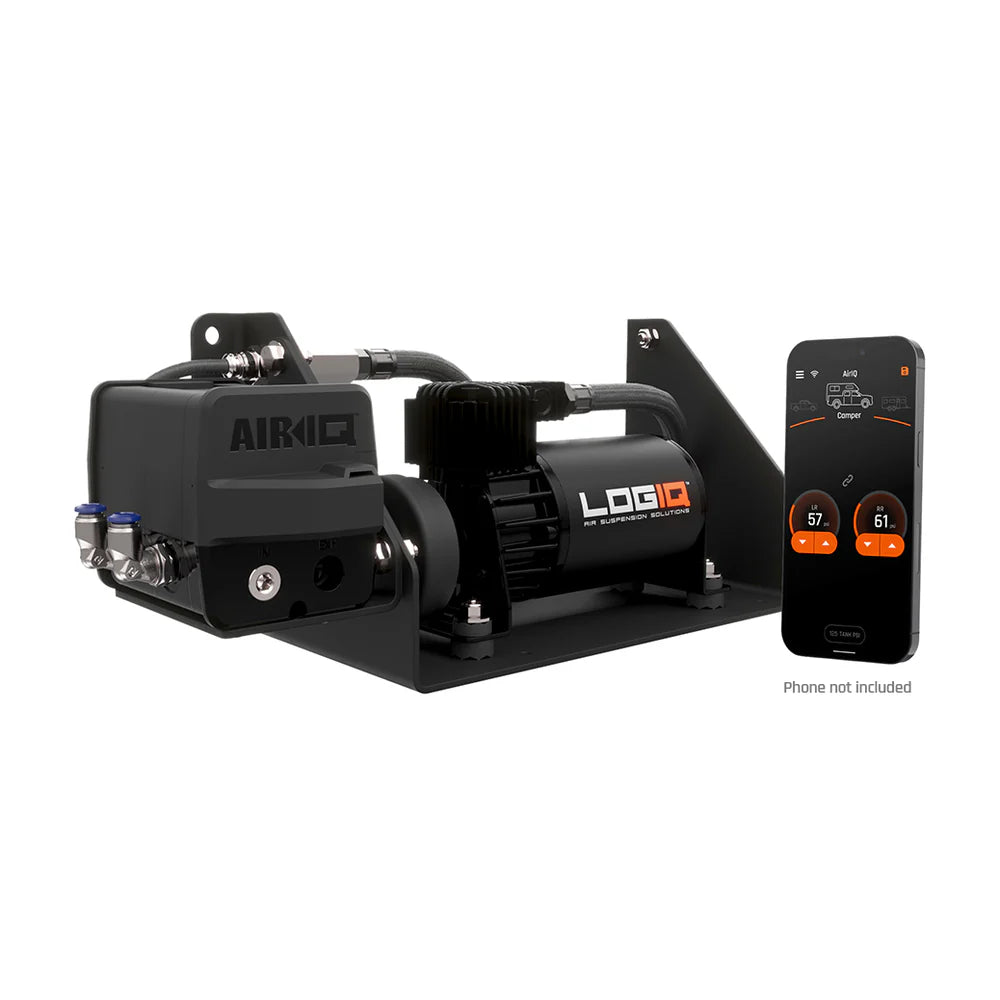

The LOGIQ AirIQ SD2 is a fully assembled, factory-tested air management system built for trucks that work as hard as you do. With independent corner control and dual-channel Bluetooth valving, you can dial in offset loads with precision — no guesswork, no compromise.
What's in the Box
- AirIQ SD2 Air Management System with 20 ft pre-installed wiring harness
- LOGIQ 150 psi compressor — 2.03 CFM @ 0 psi, 25% duty cycle
- 4 Frame Mounting Brackets with hardware
- AirIQ SD2 Installation Kit: 20 ft ¼" air line, fuse taps, 18 ft wire loom
System Specs
- Compressor Output: 2.03 CFM @ 0 psi
- Duty Cycle: 25% @ 100 psi
- Max Pressure: 150 psi
- Voltage: 12V | Current Draw: 30A
- Ingress Protection: IP54 (Compressor) / IP67 (All Other Components)

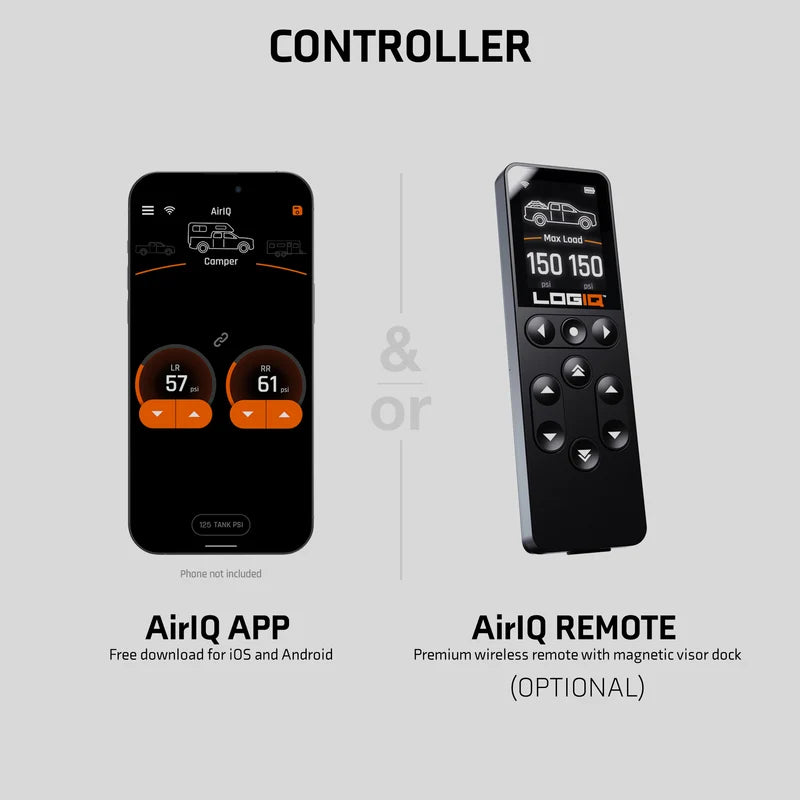

Control Options

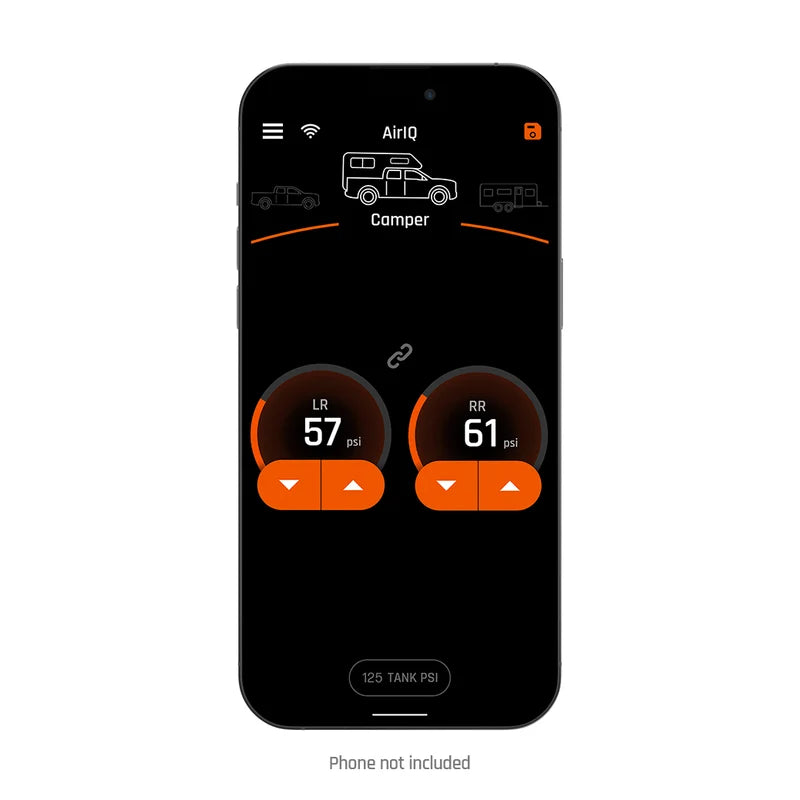

Choose the interface that fits your workflow — manage your air springs from the free AirIQ App via Bluetooth, or go hands-on with the optional AirIQ Remote for direct, tactile control.
