Description
Product Information

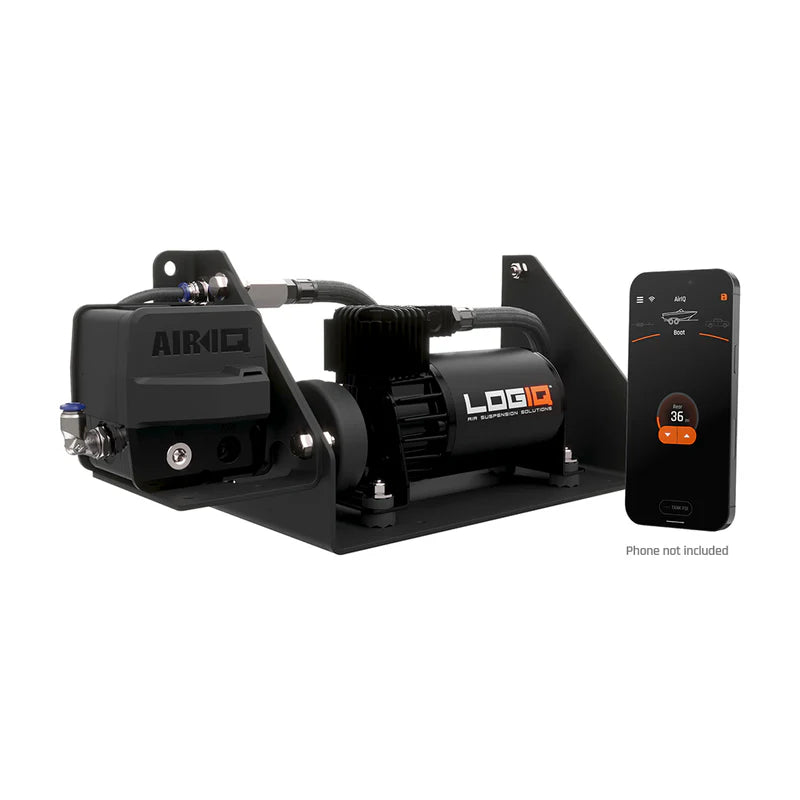

AirIQ delivers the ultimate control for your load leveling air suspension and helper bags. Complete air management packages are factory assembled and tested for guaranteed performance. This kit is our most affordable AirIQ solution with a Standard Duty compressor and single channel valving for control of both air springs together.
Includes:
(1) AirIQ SD1 Air Management System with 20 ft wiring harness pre-installed
(4) Frame Mounting Brackets and Hardware Kit
(1) AirIQ SD1 Installation Kit: Tee Fitting, 20ft 1/4" air line, fuse taps, 18ft wire loom

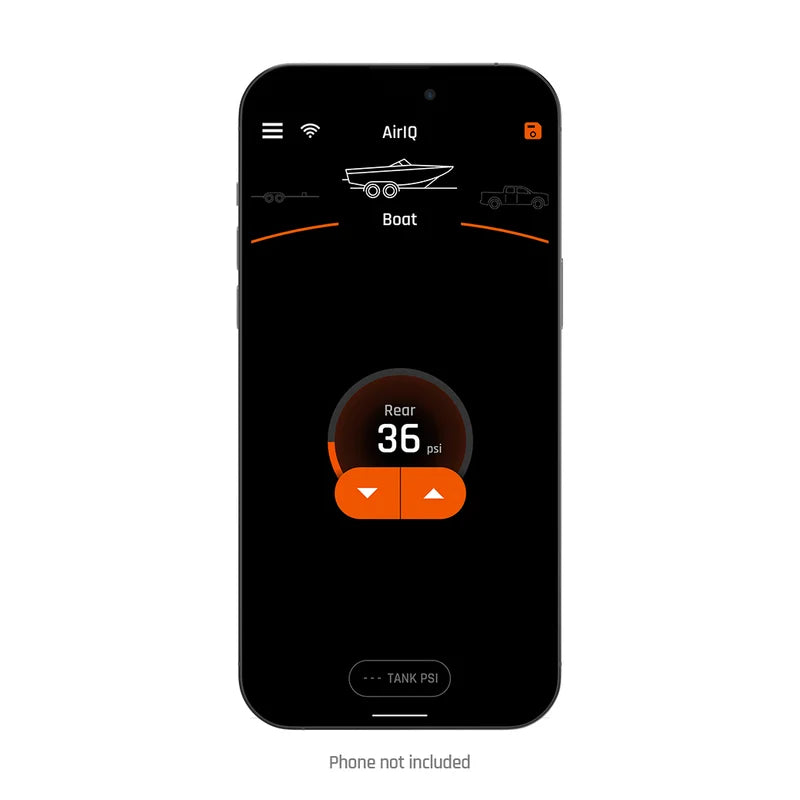

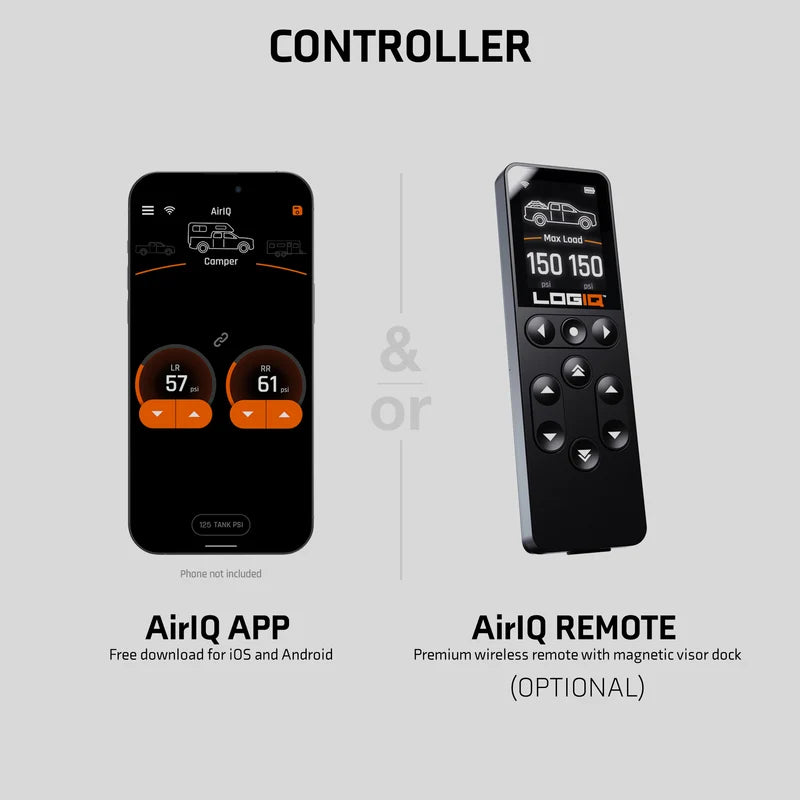

1-Channel AirIQ Bluetooth Management System for parallel control of two air springs from the AirIQ App + LOGIQ 25% duty cycle, 150 psi compressor with 2.03 CFM @ 0 psi + plumbing kit and wiring + Easy Frame Mounting Brackets
Compressor Output: 2.03 CFM @ 0psi
Compressor Duty Cycle: 25% @ 100 psi
Ingress Protection Rating: IP54 Compressor / IP67 Other Components
Max Pressure: 150 psiVoltage: 12 Volts
Current Draw: 30 Amps
