Sniper EFI Sheet Metal Fabricated Intake Manifold - Gen III Hemi
We purchased all of the left over stock, once its gone its gone!
Includes Fuel Rails & Crossover Hose Standard.
Features:
- Black Finish creates stealthy under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

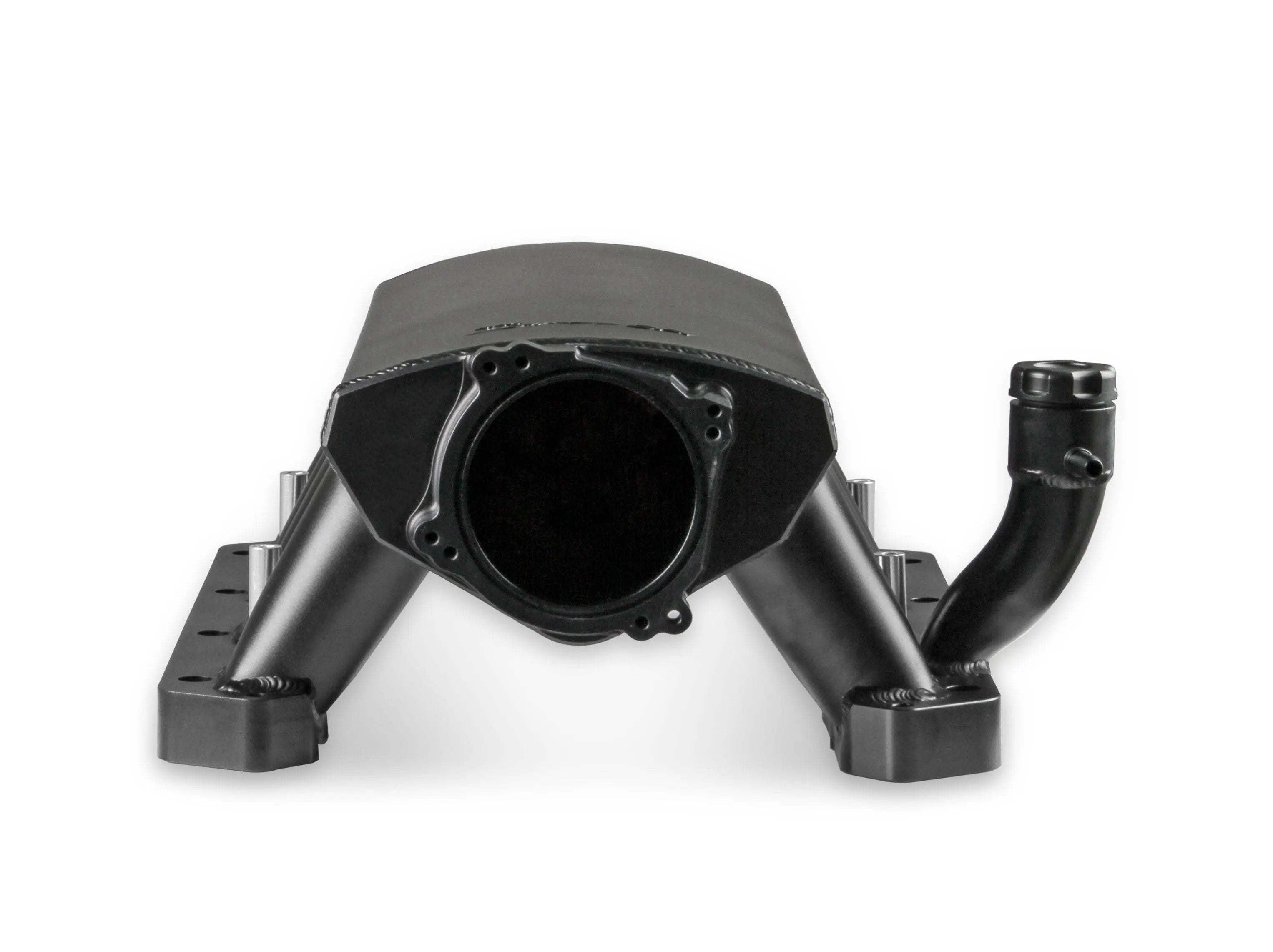

- 90mm throttle bore opening with Mopar Dual bolt pattern for increased air flow
- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Accepts 80mm 5.7L, 6.1L, 6.4L throttle body or 92mm 6.2L Hellcat throttle body
- CNC machined 1-1/8 inch billet aluminum cylinder head mounting flanges

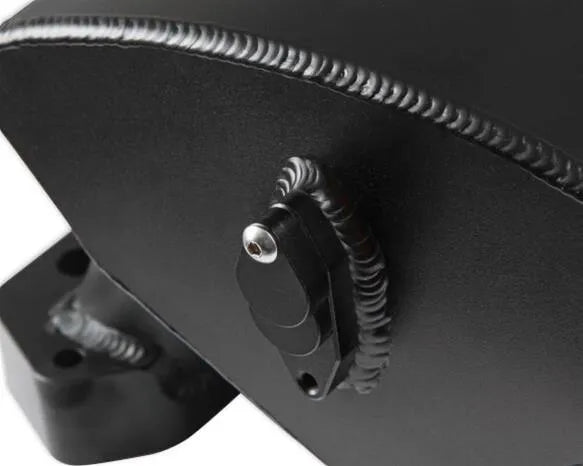

- Provision for MAP sensor located on rear of plenum
- Designed for use with 14mm top / bottom fuel injectors. Factory injectors require a spacer.
- Power range of 1800-6400 RPM

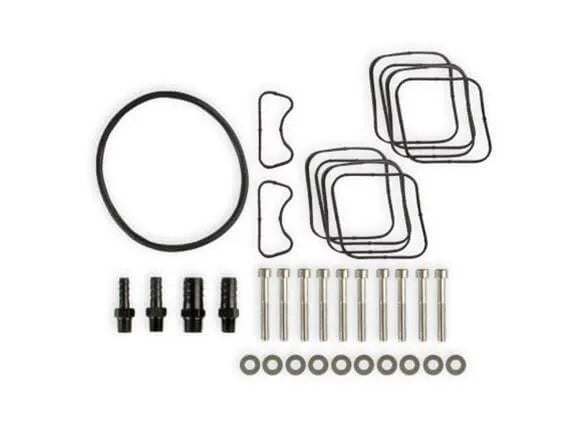

- Product includes all gaskets and hardware for a hassle-free installation when connection kits are added to the purchase.
OPTIONS
The EFI adapter and injector spacers allow you to reuse the OEM short fuel line from firewall to rail, but it may not be aesthetically pleasing. Will use all the supplied OEM sniper fittings and cross over hose.
The complete fuel line kit replaces all fuel-rail fitting and line with Vibrant performance PFTE lined E85 rate fuel hose and full flow fitting. This allow for the elimination of the factory short hose, the sniper cross over hose, and will connect directly to the hard line at the fire wall. Injector spacers are included.
Link to view complete kit
