Description
LT Cylinder Heads to LT4 Supercharger Adapter Plates
*** Some intake manifolds will require modification of alignment pin to sit flush on adapters***
- These plates adapt the non supercharger cylinder head bolt pattern to a supercharger bolt pattern
- Compatible with: 2014 and newer V8 LT series engines including L83 & L86
- Can also be used as an intake spacer for LT1, L82, L83, L84, L86, L87, and L8B engines

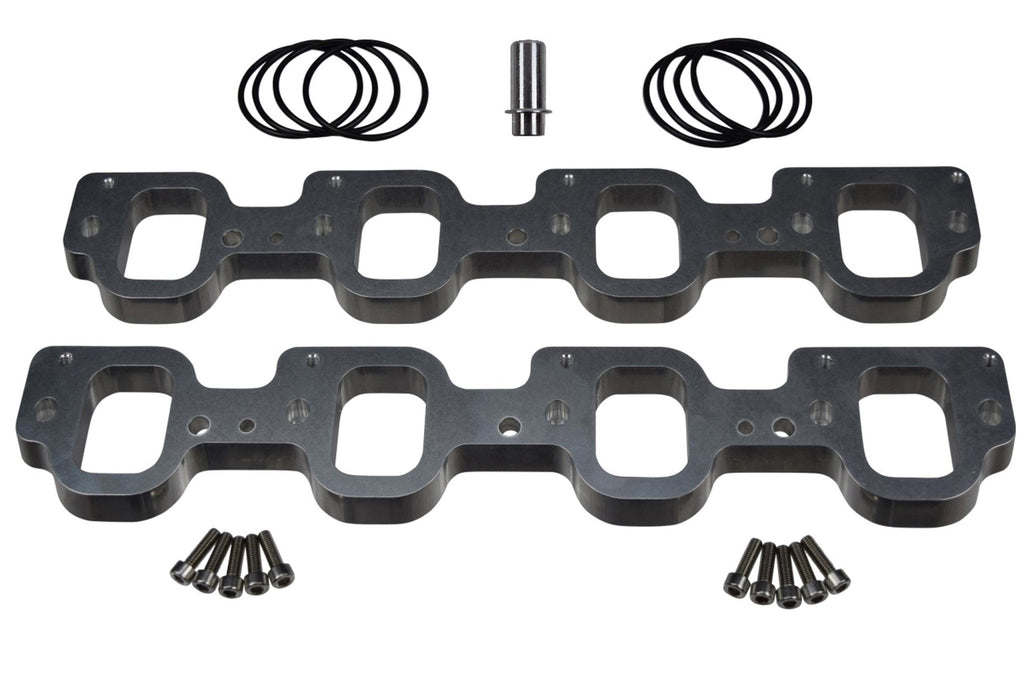

- Includes: 2 adapter plates (1/2" thick) with 8 O-ring seals, 10 supercharger to flange bolts, and 10 flange to cylinder head bolts
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Can also be used as an intake manifold spacer for LT1 bolt pattern intakes
- Will fit these cylinder heads: LT1, L82, L83, L84, L86, L87, and L8B
- Will fit these superchargers: LT4 & LT5
- May require the Fuel line to be re-routed
