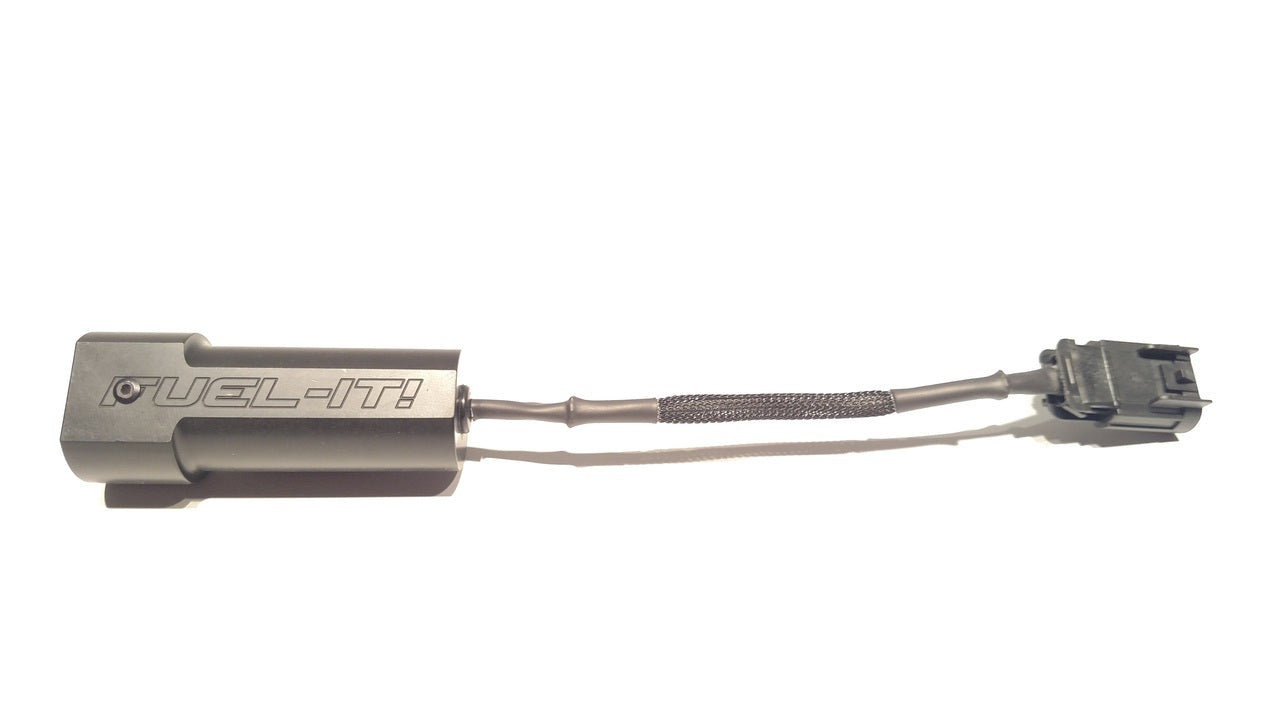

Universal Fuel-It! Bluetooth Flex-Fuel Analyzer

This is the complete plug and play solution for adding a Bluetooth compatible analyzer to your Continental flex-fuel sensor.

*Note: Fuel-It! analyzers are NOT compatible with DSX flex fuel kits.

All of our Bluetooth Ethanol Analyzers now include the optional 0-5V analog output, .5-4.5V analog output, or 50-150hz raw signal output in the same unit!

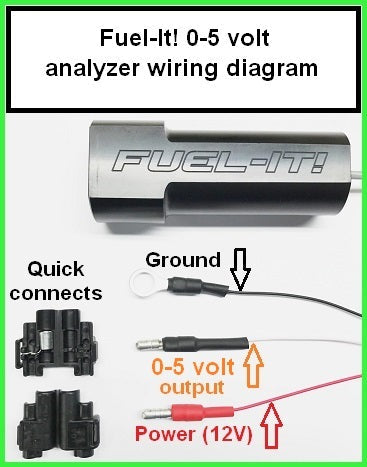

• Includes 0-5 volt linear output
• 0 volts = 0% ethanol
• 1 volt = 20% ethanol
• 2 volts = 40% ethanol
• 3 volts = 60% ethanol
• etc.

• Includes 0.5-4.5 volt linear output
• .5 volts = 0% ethanol
• 1.5 volts = 25% ethanol
• 2.5 volts = 50% ethanol
• 3.5 volts = 75% ethanol
• etc.

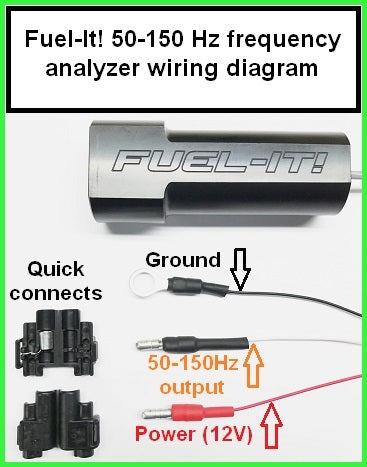

• Includes 50-150 raw signal linear output directly from the ethanol sensor
• 50hz = 0% ethanol
• 60hz = 10% ethanol
• 70hz = 20% ethanol
• 80hz = 30% ethanol
• etc.

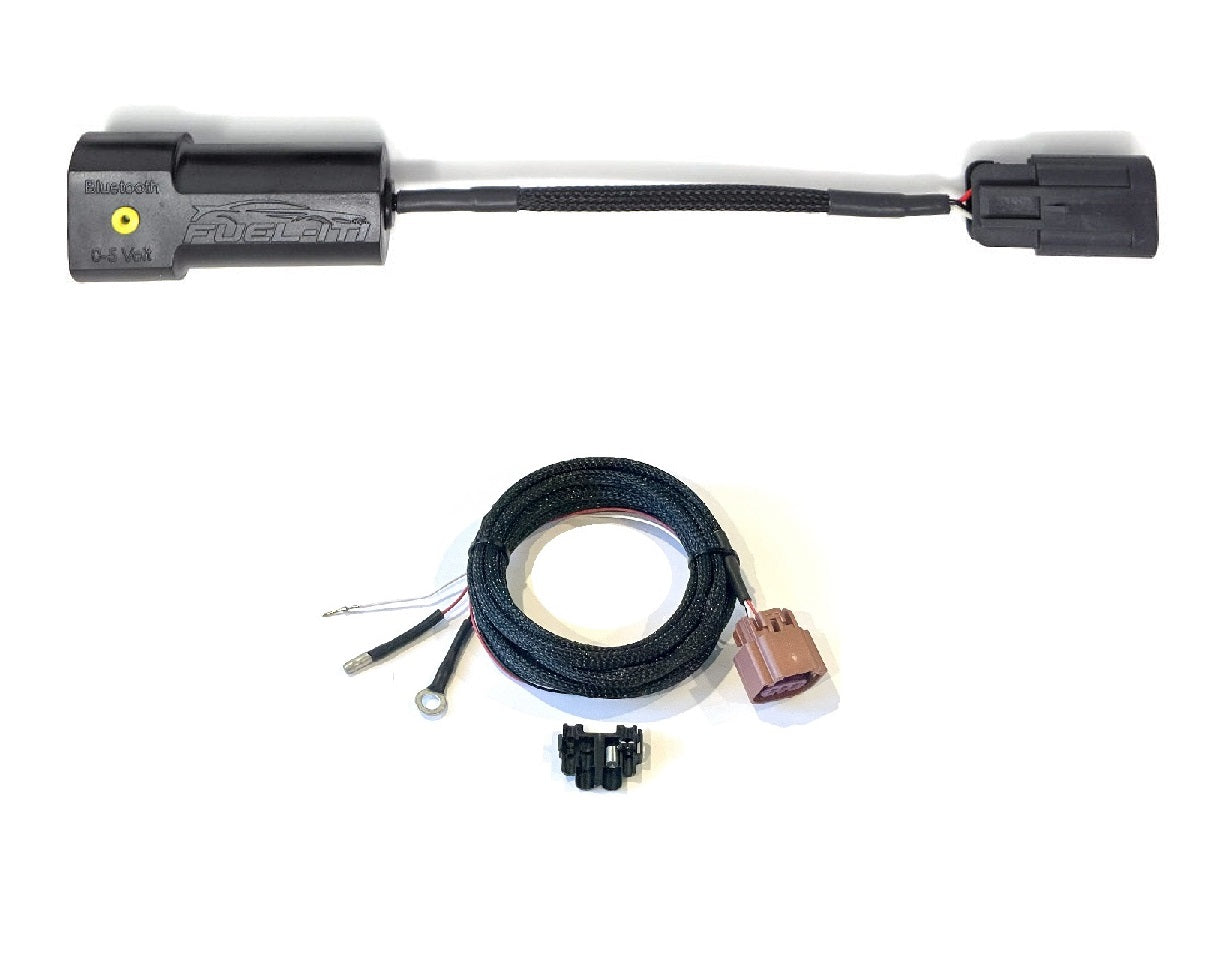

• All analyzer options include:

* Bluetooth output, analog output, and 50-150hz raw signal output

* Electrical connections for power and ground

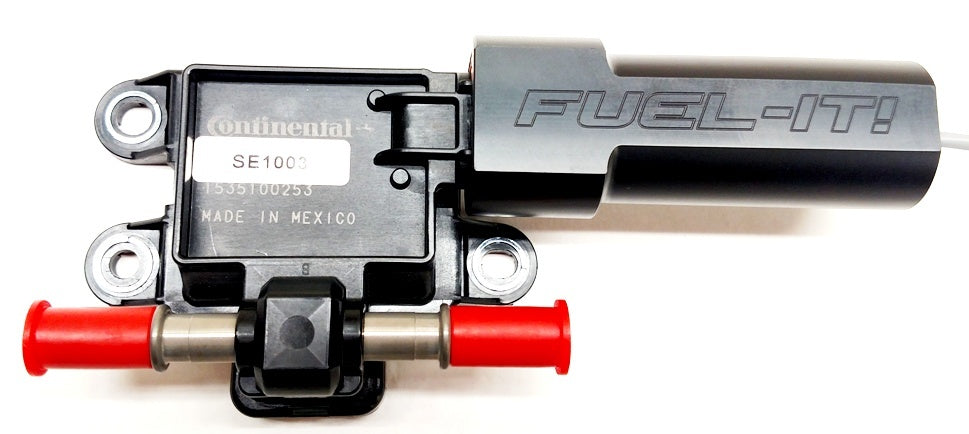

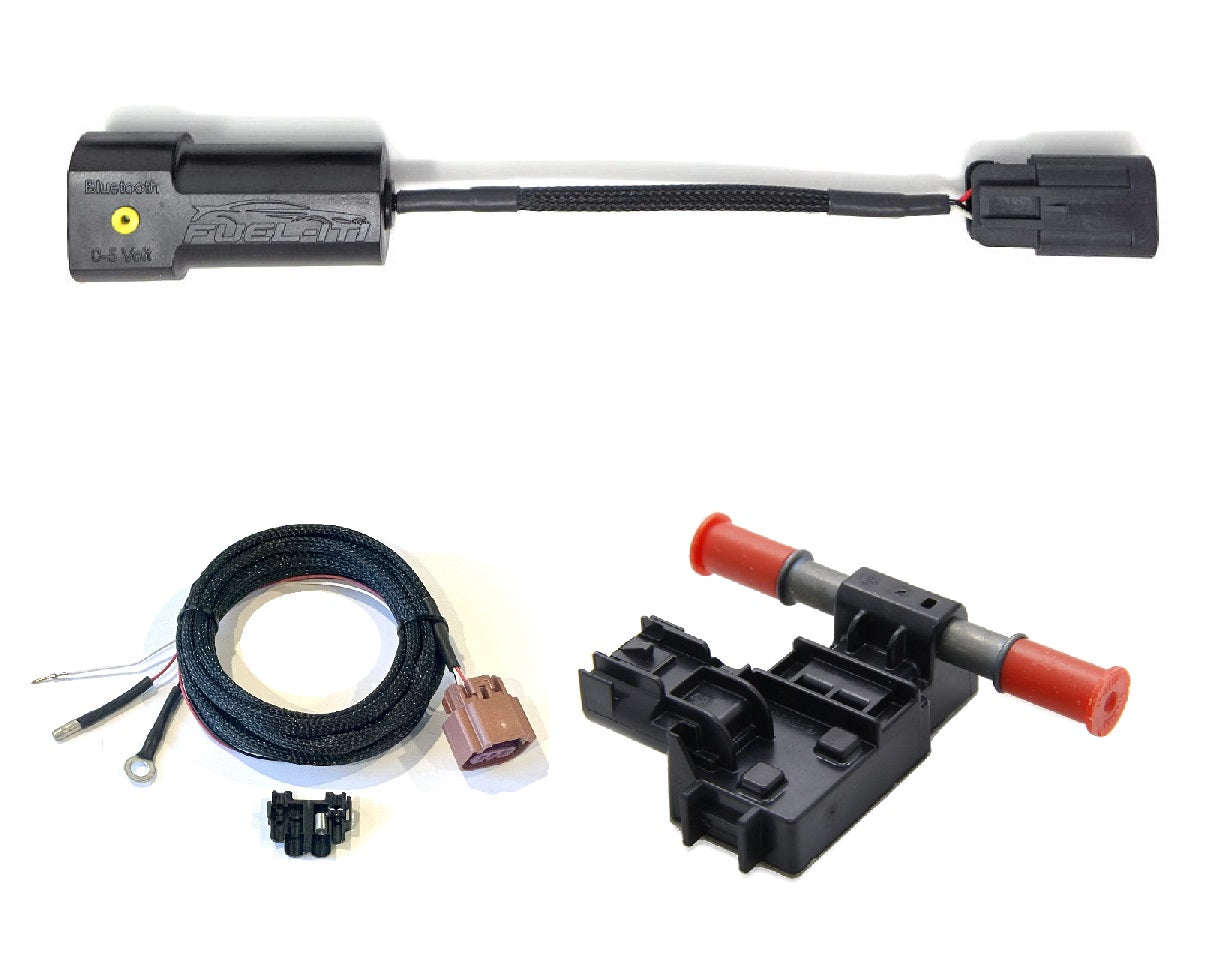

* Fuel-It! analyzer that plugs directly into the following ethanol sensors:

• Continental/GM/AC Delco Part #'s
• 13577394
• 13577429
• 13577379
• 13507128

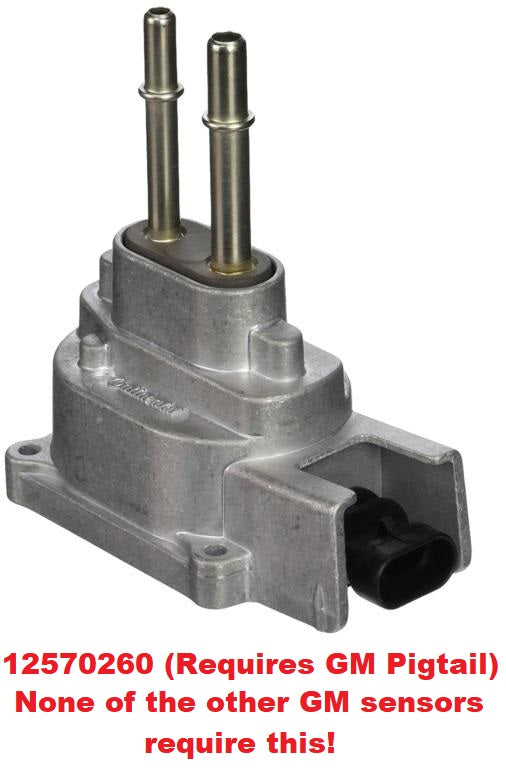

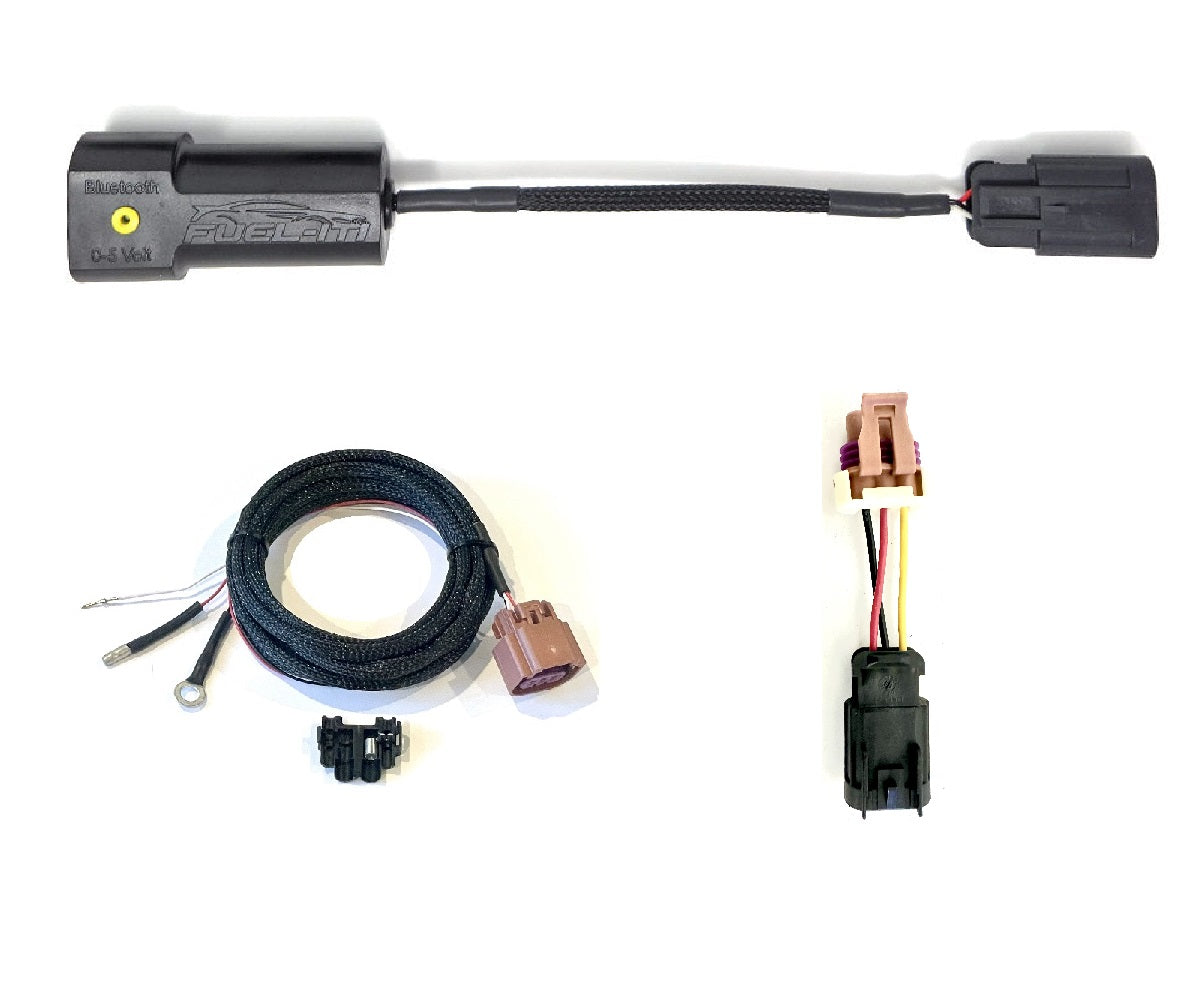

• Note: This is also compatible with the sensor part # 12570260 but it requires the optional adapter.

• Recommended Options:

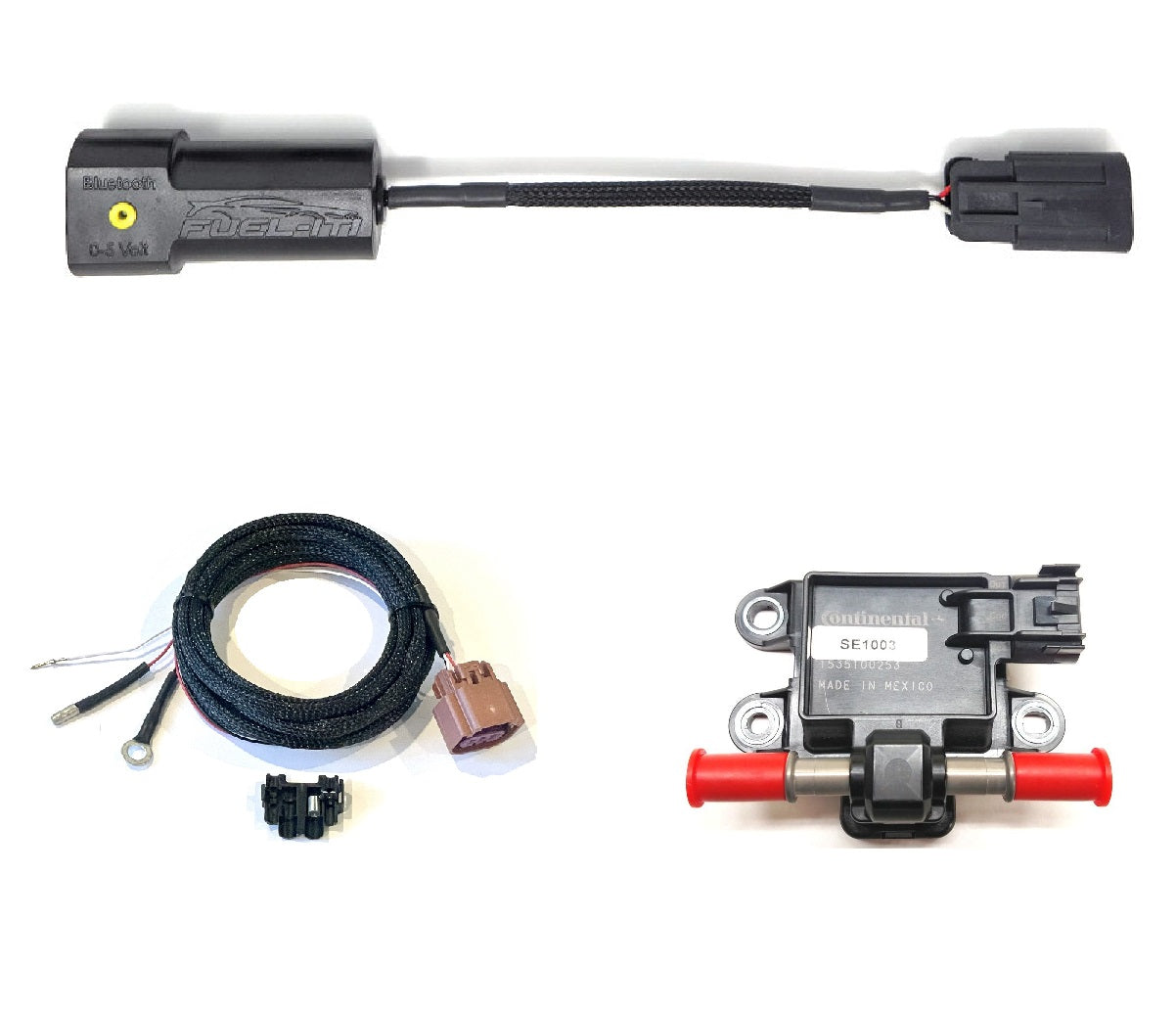

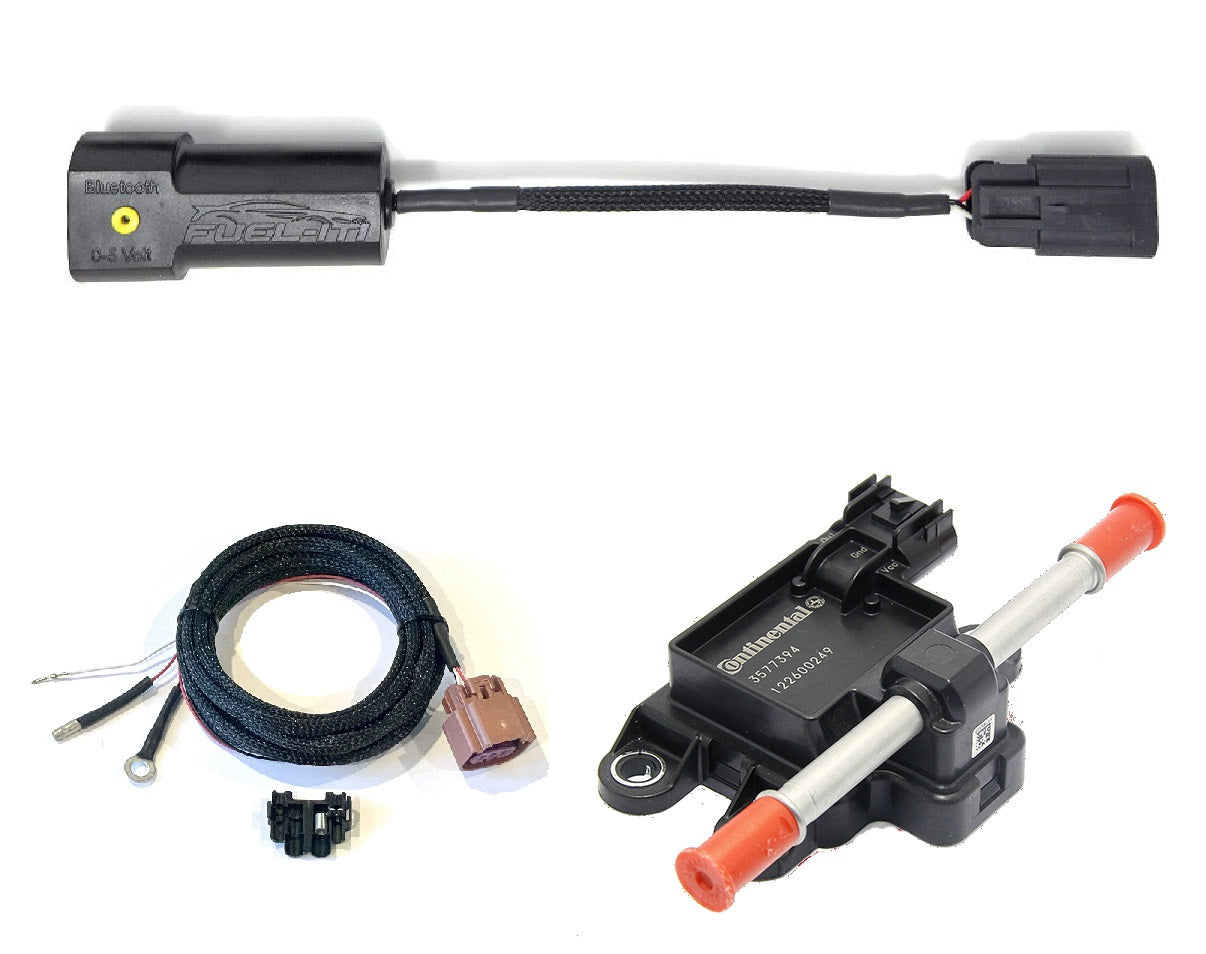

• Continental ethanol sensor
• Fuel-It! custom 3/8" Cam-Lock fitting with -6an push-on style fittings for socketless compatible hose.

* To use our Bluetooth feature an additional 3rd party app for your Android or Apple phone must be downloaded and can be found here:

• If you are using an Apple product the app can be found by clicking here
• If you are using an Android product the app can be found by clicking here

+ Flex-Fuel sensor, fittings, and fuel lines sold separately.
