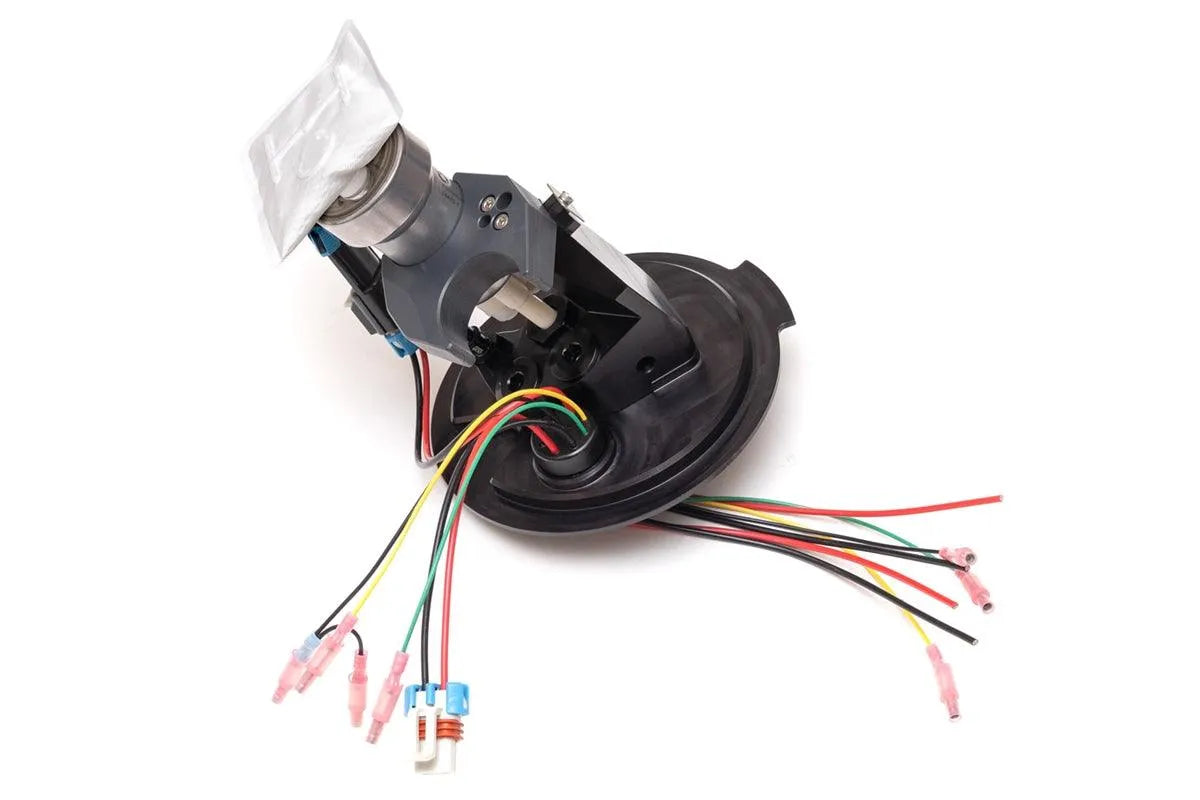

Fore Innovations LX Single Pump Module 2005-2021 Dodge Charger / Challenger / 300

2005+ Charger, Challenger, 300C, Magnum RT and SRT (not Hellcat or Demon)

Includes Plug For top of pump

Suggest using an FC2 Controller to run pump. See Here

Use in conjunction with the OE feed circuit or in a complete return style fuel system for up to 700 rwhp. Upgradeable to dual pumps. Retains OE fuel level sender, EVAP functionality, and tank transfer, and filler neck. Upgradeable to dual pump and/or for use in a return fuel system.

If used in a return configuration, this component requires the use of external feed and return lines, external filtration (for injectors), external regulation, and an upgraded electrical system. Upgraded fuel rails and an inline check valve is recommended. Supplies port fuel injection and optional wet nitrous.

See our complete fuel systems if the extra components are needed.

E85 requires F90000267, F90000274 or F90000285 fuel pumps. The factory fuel feed line should not be used with ethanol fuel.

Professional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pump makes much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.
