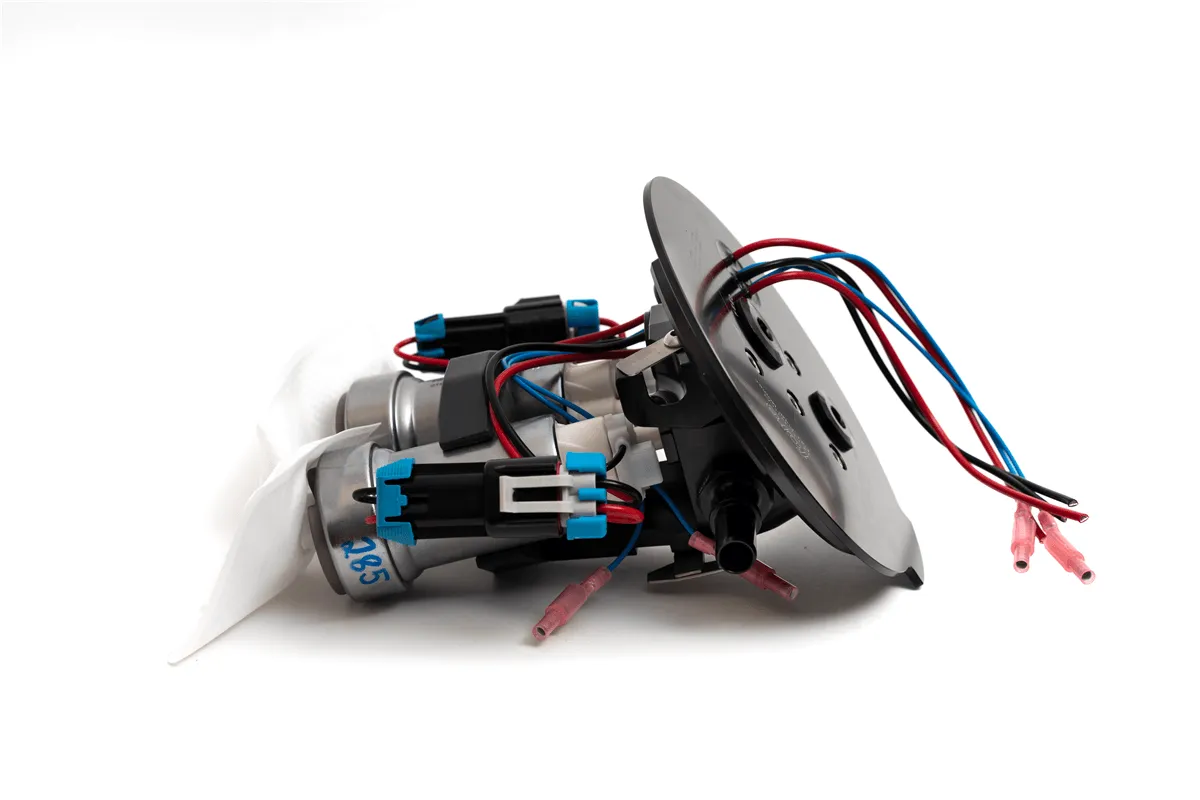

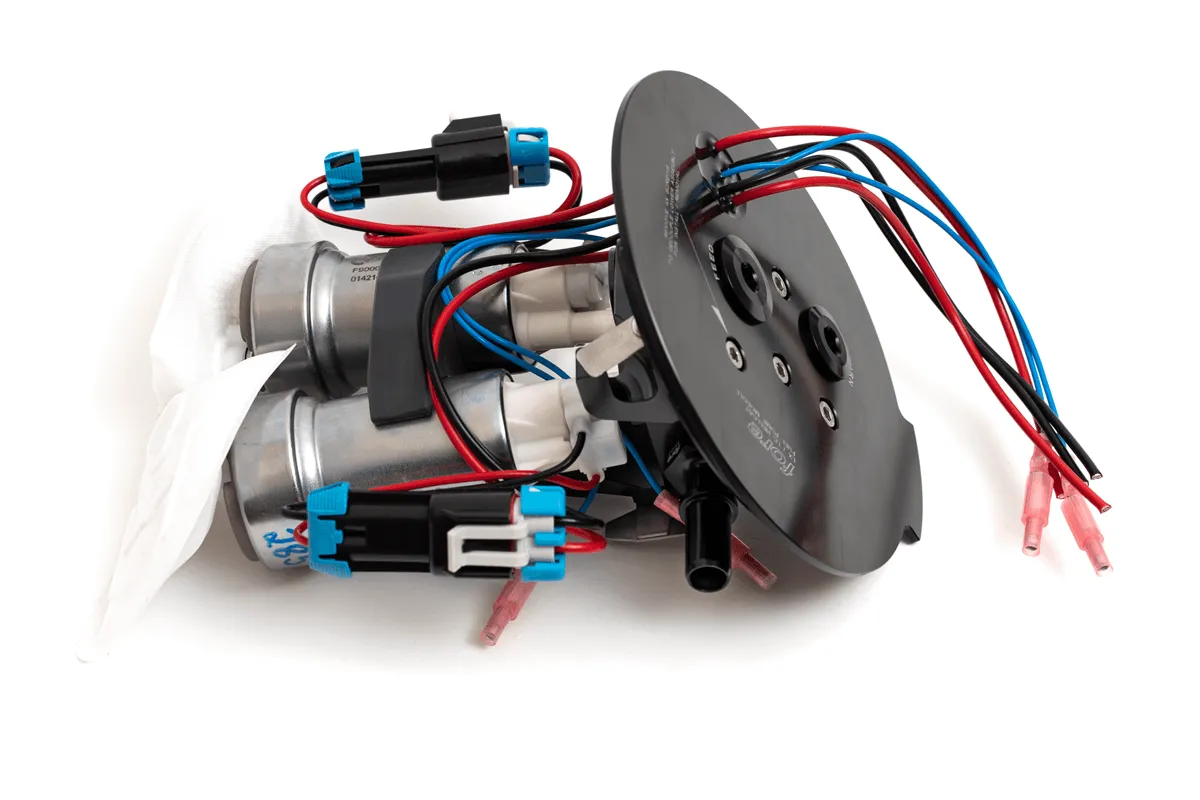

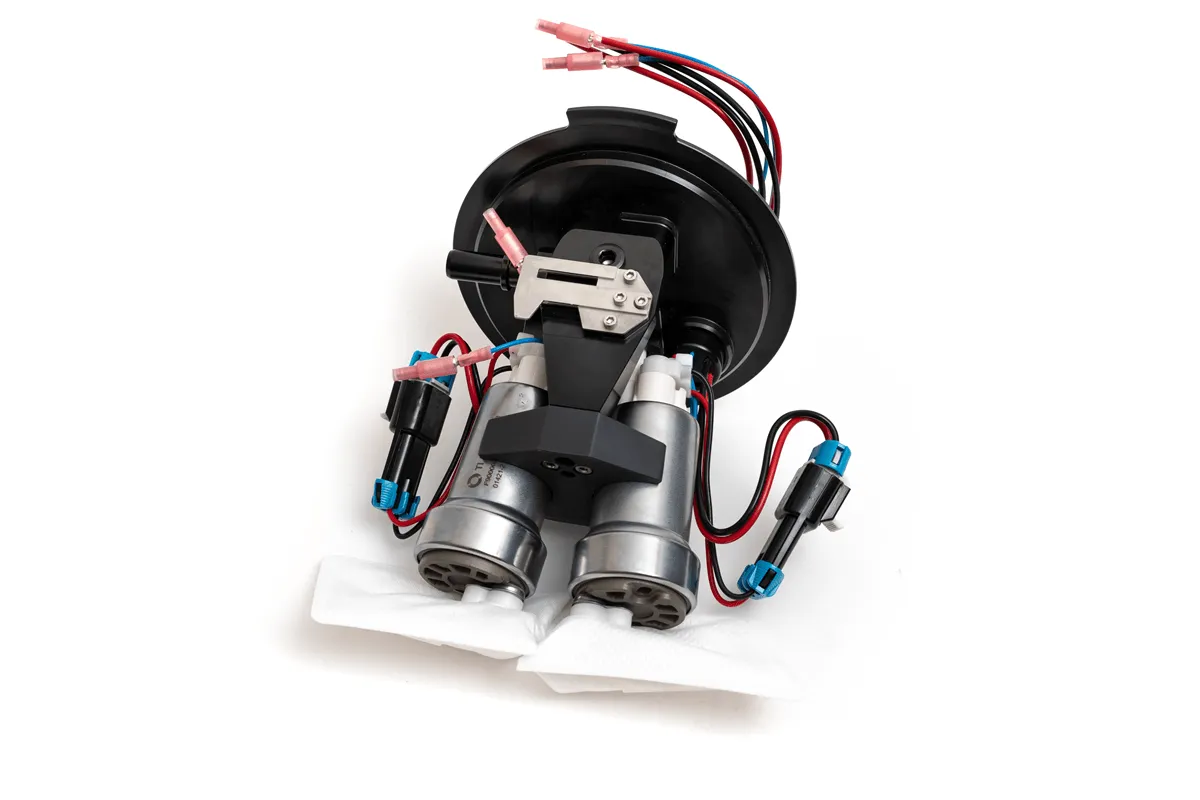

Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022

Roll over image to zoom in Click on image to zoom

Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022

Name: Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022
Brand: FORE Innovations
Price: 763.0 USD
Availability: InStock

FORE Innovations

{"id":7330069938368,"title":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022","handle":"fore-innovations-hellcat-lx-dual-pump-module-returnless-2015-2022","description":"\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFor 2015+ Hellcat (not Demon or SRT \/ RT variants)\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\u003c\/b\u003e\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eDrop in pump assembly for Hellcat Charger and Challenger\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eUse with OE fuel feed outlet, or with upgraded feed line directly off pump module\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eNo control support (modulation or regulation): see our complete Hellcat fuel systems or use at your own risk\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eE85 and race fuel compatible\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eComes with dual F90000285 fuel pumps\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eReturn port is plugged for returnless setups (see 69-800 for return configurable pump module)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eMay be converted to return use by capping off the OE feed outlet (passenger side) and adding external regulation, feed, return lines, etc.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003ePassenger side OE Feed Outlet Option\u003c\/b\u003e\u003c\/div\u003e\n\u003col data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eOpen: \u003ci data-mce-fragment=\"1\"\u003euse if you wish to neglect post filtration, connect to OE feed line\u003c\/i\u003e and send 70 micron fuel to injectors (not recommended)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eCap for OE outlet: use if you wish to use the external feed port directly on the pump module.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eAN-8 Male: adapts outlet of OE feed outlet to AN-8 male\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eAN-10 Male: adapts outlet of OE feed outlet to AN-10 male\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eNOTES ON RETURNLESS CONFIGURATION\u003c\/b\u003e\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003ePressure regulation and flow output is [in car] electronic, so performance troubleshooting must be accomplished by the tuner and\/or installer. (we cannot support)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cspan data-mce-fragment=\"1\"\u003eIn-tank fine filtration is removed, so external, inline fine filtration must be added for the safety of the injectors. \u003c\/span\u003e\u003cspan data-mce-fragment=\"1\"\u003eA second OE FPDM must be used and implemented to drive the second pump.\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eUse\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33%2D029\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33%2D029\" target=\"_blank\"\u003e33-029\u003c\/a\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003eto adapt OE rail inlet to AN-8 Male\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eUse\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33-030\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33-030\" target=\"_blank\"\u003e33-030\u003c\/a\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003eto adapt OE rail inlet to AN-10 Male\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cb data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eProfessional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime\/on\/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.\u003c\/b\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eThe shape of the factory fuel tank limits the pickup capacity of this fuel system.\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003c\/b\u003e\u003cspan data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eThe user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/b\u003e\u003c\/span\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2022-08-04T18:12:36-04:00","created_at":"2022-08-04T18:12:33-04:00","vendor":"FORE Innovations","type":"","tags":["Dodge Charger\/Challenger\/300","Fuel Pumps"],"price":76300,"price_min":76300,"price_max":84800,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43067334525120,"title":"None \/ Open \/ None (I have my own)","option1":"None","option2":"Open","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ Open \/ None (I have my own)","public_title":"None \/ Open \/ None (I have my own)","options":["None","Open","None (I have my own)"],"price":76300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334557888,"title":"None \/ Open \/ Pump power pigtails only","option1":"None","option2":"Open","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ Open \/ Pump power pigtails only","public_title":"None \/ Open \/ Pump power pigtails only","options":["None","Open","Pump power pigtails only"],"price":78800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334590656,"title":"None \/ Cap for OE outlet \/ None (I have my own)","option1":"None","option2":"Cap for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ Cap for OE outlet \/ None (I have my own)","public_title":"None \/ Cap for OE outlet \/ None (I have my own)","options":["None","Cap for OE outlet","None (I have my own)"],"price":79400,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334623424,"title":"None \/ Cap for OE outlet \/ Pump power pigtails only","option1":"None","option2":"Cap for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ Cap for OE outlet \/ Pump power pigtails only","public_title":"None \/ Cap for OE outlet \/ Pump power pigtails only","options":["None","Cap for OE outlet","Pump power pigtails only"],"price":81900,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334656192,"title":"None \/ AN-8 Male for OE outlet \/ None (I have my own)","option1":"None","option2":"AN-8 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ AN-8 Male for OE outlet \/ None (I have my own)","public_title":"None \/ AN-8 Male for OE outlet \/ None (I have my own)","options":["None","AN-8 Male for OE outlet","None (I have my own)"],"price":79400,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334688960,"title":"None \/ AN-8 Male for OE outlet \/ Pump power pigtails only","option1":"None","option2":"AN-8 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ AN-8 Male for OE outlet \/ Pump power pigtails only","public_title":"None \/ AN-8 Male for OE outlet \/ Pump power pigtails only","options":["None","AN-8 Male for OE outlet","Pump power pigtails only"],"price":81900,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334721728,"title":"None \/ AN-10 Male for OE outlet \/ None (I have my own)","option1":"None","option2":"AN-10 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ AN-10 Male for OE outlet \/ None (I have my own)","public_title":"None \/ AN-10 Male for OE outlet \/ None (I have my own)","options":["None","AN-10 Male for OE outlet","None (I have my own)"],"price":79400,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334754496,"title":"None \/ AN-10 Male for OE outlet \/ Pump power pigtails only","option1":"None","option2":"AN-10 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - None \/ AN-10 Male for OE outlet \/ Pump power pigtails only","public_title":"None \/ AN-10 Male for OE outlet \/ Pump power pigtails only","options":["None","AN-10 Male for OE outlet","Pump power pigtails only"],"price":81900,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334787264,"title":"-8 AN Male 90° low profile \/ Open \/ None (I have my own)","option1":"-8 AN Male 90° low profile","option2":"Open","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ Open \/ None (I have my own)","public_title":"-8 AN Male 90° low profile \/ Open \/ None (I have my own)","options":["-8 AN Male 90° low profile","Open","None (I have my own)"],"price":79200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334820032,"title":"-8 AN Male 90° low profile \/ Open \/ Pump power pigtails only","option1":"-8 AN Male 90° low profile","option2":"Open","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ Open \/ Pump power pigtails only","public_title":"-8 AN Male 90° low profile \/ Open \/ Pump power pigtails only","options":["-8 AN Male 90° low profile","Open","Pump power pigtails only"],"price":81700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334852800,"title":"-8 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","option1":"-8 AN Male 90° low profile","option2":"Cap for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","public_title":"-8 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","options":["-8 AN Male 90° low profile","Cap for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334885568,"title":"-8 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","option1":"-8 AN Male 90° low profile","option2":"Cap for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","public_title":"-8 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","options":["-8 AN Male 90° low profile","Cap for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334918336,"title":"-8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","option1":"-8 AN Male 90° low profile","option2":"AN-8 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","public_title":"-8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","options":["-8 AN Male 90° low profile","AN-8 Male for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334951104,"title":"-8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","option1":"-8 AN Male 90° low profile","option2":"AN-8 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","public_title":"-8 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","options":["-8 AN Male 90° low profile","AN-8 Male for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067334983872,"title":"-8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","option1":"-8 AN Male 90° low profile","option2":"AN-10 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","public_title":"-8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","options":["-8 AN Male 90° low profile","AN-10 Male for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335016640,"title":"-8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","option1":"-8 AN Male 90° low profile","option2":"AN-10 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","public_title":"-8 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","options":["-8 AN Male 90° low profile","AN-10 Male for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335049408,"title":"-10 AN Male 90° low profile \/ Open \/ None (I have my own)","option1":"-10 AN Male 90° low profile","option2":"Open","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ Open \/ None (I have my own)","public_title":"-10 AN Male 90° low profile \/ Open \/ None (I have my own)","options":["-10 AN Male 90° low profile","Open","None (I have my own)"],"price":79200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335082176,"title":"-10 AN Male 90° low profile \/ Open \/ Pump power pigtails only","option1":"-10 AN Male 90° low profile","option2":"Open","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ Open \/ Pump power pigtails only","public_title":"-10 AN Male 90° low profile \/ Open \/ Pump power pigtails only","options":["-10 AN Male 90° low profile","Open","Pump power pigtails only"],"price":81700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335114944,"title":"-10 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","option1":"-10 AN Male 90° low profile","option2":"Cap for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","public_title":"-10 AN Male 90° low profile \/ Cap for OE outlet \/ None (I have my own)","options":["-10 AN Male 90° low profile","Cap for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335147712,"title":"-10 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","option1":"-10 AN Male 90° low profile","option2":"Cap for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","public_title":"-10 AN Male 90° low profile \/ Cap for OE outlet \/ Pump power pigtails only","options":["-10 AN Male 90° low profile","Cap for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335180480,"title":"-10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","option1":"-10 AN Male 90° low profile","option2":"AN-8 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","public_title":"-10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ None (I have my own)","options":["-10 AN Male 90° low profile","AN-8 Male for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335213248,"title":"-10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","option1":"-10 AN Male 90° low profile","option2":"AN-8 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","public_title":"-10 AN Male 90° low profile \/ AN-8 Male for OE outlet \/ Pump power pigtails only","options":["-10 AN Male 90° low profile","AN-8 Male for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335246016,"title":"-10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","option1":"-10 AN Male 90° low profile","option2":"AN-10 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","public_title":"-10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ None (I have my own)","options":["-10 AN Male 90° low profile","AN-10 Male for OE outlet","None (I have my own)"],"price":82300,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335278784,"title":"-10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","option1":"-10 AN Male 90° low profile","option2":"AN-10 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - -10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","public_title":"-10 AN Male 90° low profile \/ AN-10 Male for OE outlet \/ Pump power pigtails only","options":["-10 AN Male 90° low profile","AN-10 Male for OE outlet","Pump power pigtails only"],"price":84800,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335311552,"title":"Plug \/ Open \/ None (I have my own)","option1":"Plug","option2":"Open","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ Open \/ None (I have my own)","public_title":"Plug \/ Open \/ None (I have my own)","options":["Plug","Open","None (I have my own)"],"price":77100,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335344320,"title":"Plug \/ Open \/ Pump power pigtails only","option1":"Plug","option2":"Open","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ Open \/ Pump power pigtails only","public_title":"Plug \/ Open \/ Pump power pigtails only","options":["Plug","Open","Pump power pigtails only"],"price":79600,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335377088,"title":"Plug \/ Cap for OE outlet \/ None (I have my own)","option1":"Plug","option2":"Cap for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ Cap for OE outlet \/ None (I have my own)","public_title":"Plug \/ Cap for OE outlet \/ None (I have my own)","options":["Plug","Cap for OE outlet","None (I have my own)"],"price":80200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335409856,"title":"Plug \/ Cap for OE outlet \/ Pump power pigtails only","option1":"Plug","option2":"Cap for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ Cap for OE outlet \/ Pump power pigtails only","public_title":"Plug \/ Cap for OE outlet \/ Pump power pigtails only","options":["Plug","Cap for OE outlet","Pump power pigtails only"],"price":82700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335442624,"title":"Plug \/ AN-8 Male for OE outlet \/ None (I have my own)","option1":"Plug","option2":"AN-8 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ AN-8 Male for OE outlet \/ None (I have my own)","public_title":"Plug \/ AN-8 Male for OE outlet \/ None (I have my own)","options":["Plug","AN-8 Male for OE outlet","None (I have my own)"],"price":80200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335475392,"title":"Plug \/ AN-8 Male for OE outlet \/ Pump power pigtails only","option1":"Plug","option2":"AN-8 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ AN-8 Male for OE outlet \/ Pump power pigtails only","public_title":"Plug \/ AN-8 Male for OE outlet \/ Pump power pigtails only","options":["Plug","AN-8 Male for OE outlet","Pump power pigtails only"],"price":82700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335508160,"title":"Plug \/ AN-10 Male for OE outlet \/ None (I have my own)","option1":"Plug","option2":"AN-10 Male for OE outlet","option3":"None (I have my own)","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ AN-10 Male for OE outlet \/ None (I have my own)","public_title":"Plug \/ AN-10 Male for OE outlet \/ None (I have my own)","options":["Plug","AN-10 Male for OE outlet","None (I have my own)"],"price":80200,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43067335540928,"title":"Plug \/ AN-10 Male for OE outlet \/ Pump power pigtails only","option1":"Plug","option2":"AN-10 Male for OE outlet","option3":"Pump power pigtails only","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fore Innovations Hellcat LX Dual Pump Module, Returnless 2015-2022 - Plug \/ AN-10 Male for OE outlet \/ Pump power pigtails only","public_title":"Plug \/ AN-10 Male for OE outlet \/ Pump power pigtails only","options":["Plug","AN-10 Male for OE outlet","Pump power pigtails only"],"price":82700,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/797performance.com\/cdn\/shop\/products\/69-700-4.png?v=1721319159","\/\/797performance.com\/cdn\/shop\/products\/69-700-2.png?v=1721319164","\/\/797performance.com\/cdn\/shop\/products\/69-700-7.png?v=1721319170","\/\/797performance.com\/cdn\/shop\/products\/69-700-6.png?v=1721319175","\/\/797performance.com\/cdn\/shop\/products\/69-700-5.png?v=1721319179"],"featured_image":"\/\/797performance.com\/cdn\/shop\/products\/69-700-4.png?v=1721319159","options":["Feed Fitting","Passenger side OE feed outlet","Electrical Upgrade (required)"],"media":[{"alt":null,"id":27075982262464,"position":1,"preview_image":{"aspect_ratio":1.501,"height":799,"width":1199,"src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-4.png?v=1721319159"},"aspect_ratio":1.501,"height":799,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-4.png?v=1721319159","width":1199},{"alt":null,"id":27075982295232,"position":2,"preview_image":{"aspect_ratio":1.501,"height":799,"width":1199,"src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-2.png?v=1721319164"},"aspect_ratio":1.501,"height":799,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-2.png?v=1721319164","width":1199},{"alt":null,"id":27075982328000,"position":3,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-7.png?v=1721319170"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-7.png?v=1721319170","width":1200},{"alt":null,"id":27075982360768,"position":4,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-6.png?v=1721319175"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-6.png?v=1721319175","width":1200},{"alt":null,"id":27075982393536,"position":5,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-5.png?v=1721319179"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/69-700-5.png?v=1721319179","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eFor 2015+ Hellcat (not Demon or SRT \/ RT variants)\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\u003c\/b\u003e\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eDrop in pump assembly for Hellcat Charger and Challenger\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eUse with OE fuel feed outlet, or with upgraded feed line directly off pump module\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eNo control support (modulation or regulation): see our complete Hellcat fuel systems or use at your own risk\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eE85 and race fuel compatible\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eComes with dual F90000285 fuel pumps\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eReturn port is plugged for returnless setups (see 69-800 for return configurable pump module)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eMay be converted to return use by capping off the OE feed outlet (passenger side) and adding external regulation, feed, return lines, etc.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003ePassenger side OE Feed Outlet Option\u003c\/b\u003e\u003c\/div\u003e\n\u003col data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eOpen: \u003ci data-mce-fragment=\"1\"\u003euse if you wish to neglect post filtration, connect to OE feed line\u003c\/i\u003e and send 70 micron fuel to injectors (not recommended)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eCap for OE outlet: use if you wish to use the external feed port directly on the pump module.\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eAN-8 Male: adapts outlet of OE feed outlet to AN-8 male\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eAN-10 Male: adapts outlet of OE feed outlet to AN-10 male\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eNOTES ON RETURNLESS CONFIGURATION\u003c\/b\u003e\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003ePressure regulation and flow output is [in car] electronic, so performance troubleshooting must be accomplished by the tuner and\/or installer. (we cannot support)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cspan data-mce-fragment=\"1\"\u003eIn-tank fine filtration is removed, so external, inline fine filtration must be added for the safety of the injectors. \u003c\/span\u003e\u003cspan data-mce-fragment=\"1\"\u003eA second OE FPDM must be used and implemented to drive the second pump.\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eUse\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33%2D029\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33%2D029\" target=\"_blank\"\u003e33-029\u003c\/a\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003eto adapt OE rail inlet to AN-8 Male\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eUse\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33-030\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/dealers.foreinnovations.com\/ProductDetails.asp?ProductCode=33-030\" target=\"_blank\"\u003e33-030\u003c\/a\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003eto adapt OE rail inlet to AN-10 Male\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003cb data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003eProfessional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime\/on\/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.\u003c\/b\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eThe shape of the factory fuel tank limits the pickup capacity of this fuel system.\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003c\/b\u003e\u003cspan data-mce-fragment=\"1\"\u003e\u003cb data-mce-fragment=\"1\"\u003eThe user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/b\u003e\u003c\/span\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Feed Fitting: None

Passenger side OE feed outlet: Open

Electrical Upgrade (required): None (I have my own)

Variant

Price:

$763.00 USD

Quantity:

Share this product

For 2015+ Hellcat (not Demon or SRT / RT variants)

Drop in pump assembly for Hellcat Charger and Challenger
Use with OE fuel feed outlet, or with upgraded feed line directly off pump module
No control support (modulation or regulation): see our complete Hellcat fuel systems or use at your own risk
E85 and race fuel compatible
Comes with dual F90000285 fuel pumps
Return port is plugged for returnless setups (see 69-800 for return configurable pump module)
May be converted to return use by capping off the OE feed outlet (passenger side) and adding external regulation, feed, return lines, etc.

Passenger side OE Feed Outlet Option

Open: use if you wish to neglect post filtration, connect to OE feed line and send 70 micron fuel to injectors (not recommended)
Cap for OE outlet: use if you wish to use the external feed port directly on the pump module.
AN-8 Male: adapts outlet of OE feed outlet to AN-8 male
AN-10 Male: adapts outlet of OE feed outlet to AN-10 male

NOTES ON RETURNLESS CONFIGURATION

Pressure regulation and flow output is [in car] electronic, so performance troubleshooting must be accomplished by the tuner and/or installer. (we cannot support)
In-tank fine filtration is removed, so external, inline fine filtration must be added for the safety of the injectors. A second OE FPDM must be used and implemented to drive the second pump.
Use 33-029 to adapt OE rail inlet to AN-8 Male
Use 33-030 to adapt OE rail inlet to AN-10 Male

Professional installation and a custom tune is required. Qualified installers must be able to interface to the OE harness, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

The shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.
