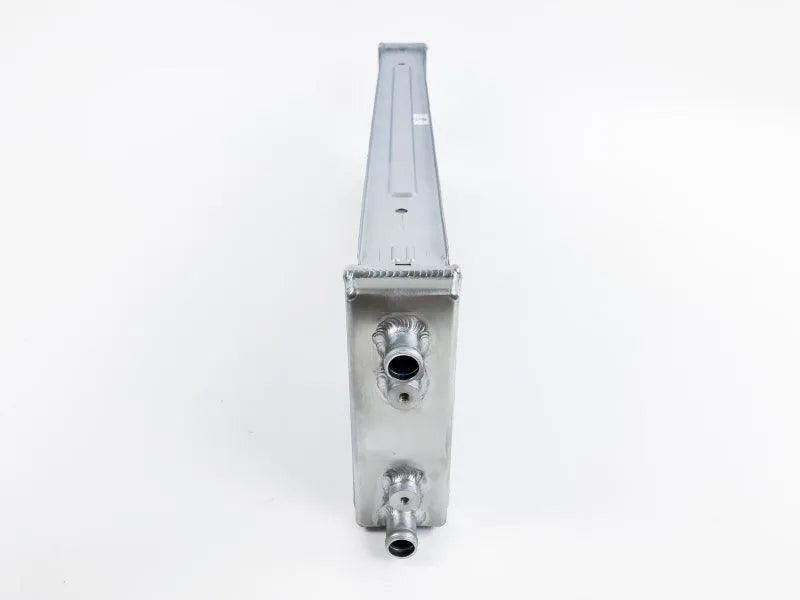

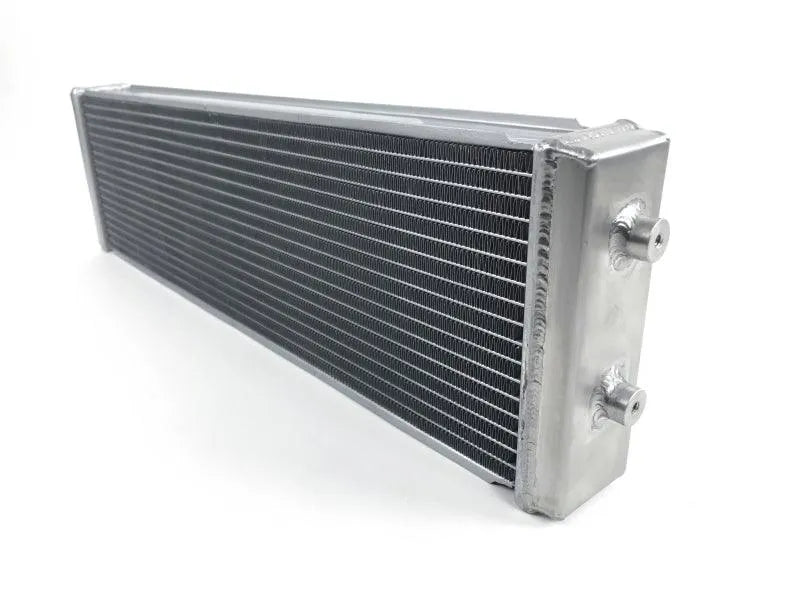

CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat

Roll over image to zoom in Click on image to zoom

CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat

Name: CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat
Brand: CSF
SKU: csf8030
Price: 350.1 USD
Availability: InStock

CSFSKU: csf8030

{"id":4631082860618,"title":"CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat","handle":"csf-universal-heat-exchanger-for-hellcat-supercharger-conversion","description":"\u003cp\u003e\u003cstrong\u003eThis is a great sized for charger\/challenger\/300 using the hellcat supercharger conversion. It is a universal part so some work will be required to make use of it. \u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eDual Pass (Cross-flow) Universal Heat Exchanger (CSF#8030) Features\u003c\/strong\u003e:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eOverall Dimensions (Tank\/Tank) 25’L x 7.25’H x 2.5’W (635mmL x 184mmH x 64mmW)\u003c\/li\u003e\n\u003cli\u003e2-row 52mm (Dual Core) featuring\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/csfrace.com\/radiator-technology\/#core\" aria-label=\"(opens in a new tab)\" target=\"_blank\"\u003eCSF’s exclusive B-tube technology\u003c\/a\u003e\n\u003c\/li\u003e\n\u003cli\u003eUltra-efficient multi-louvered fin w\/ 8mm fin height (for proper air flow to other cooling components). Resulting in optimal surface area contact and heat dissipation\u003c\/li\u003e\n\u003cli\u003eDual-Pass structure allows the coolant to flow across the core of the heat exchanger 2 times before exiting the radiator for lowest outlet temperature possible\u003c\/li\u003e\n\u003cli\u003e4 CNC machined mounting points – 2 on each end tank\u003c\/li\u003e\n\u003cli\u003e3\/4 inch inlet\/outlet slip-on hose fittings (19mm)\u003c\/li\u003e\n\u003cli\u003e100% all aluminum TIG welded construction\u003c\/li\u003e\n\u003cli\u003e2 Year limited warranty\u003c\/li\u003e\n\u003cli\u003ePolished to a satin finish\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2020-06-08T21:34:31-04:00","created_at":"2020-06-08T21:40:20-04:00","vendor":"CSF","type":"Cooling","tags":["Condensers\/exchangers","Dodge Charger\/Challenger\/300","Hellcat Supercharger Conversion Parts","Radiators"],"price":35010,"price_min":35010,"price_max":35010,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":32212894646346,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"csf8030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat","public_title":null,"options":["Default Title"],"price":35010,"weight":2268,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/797performance.com\/cdn\/shop\/products\/898c5f0a05f9e6c414f7662f8263c1a8.jpg?v=1721314503","\/\/797performance.com\/cdn\/shop\/products\/1cde3aef7adff482b44ff23053f2421a.jpg?v=1721314506","\/\/797performance.com\/cdn\/shop\/products\/7b091d533d02ae92a2bea63c7e7aa939.jpg?v=1721314508","\/\/797performance.com\/cdn\/shop\/products\/548e03e4dbe24072e7380be2ca38b010.jpg?v=1721314509"],"featured_image":"\/\/797performance.com\/cdn\/shop\/products\/898c5f0a05f9e6c414f7662f8263c1a8.jpg?v=1721314503","options":["Title"],"media":[{"alt":null,"id":6909387964490,"position":1,"preview_image":{"aspect_ratio":1.384,"height":578,"width":800,"src":"\/\/797performance.com\/cdn\/shop\/products\/898c5f0a05f9e6c414f7662f8263c1a8.jpg?v=1721314503"},"aspect_ratio":1.384,"height":578,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/898c5f0a05f9e6c414f7662f8263c1a8.jpg?v=1721314503","width":800},{"alt":null,"id":6909387866186,"position":2,"preview_image":{"aspect_ratio":1.333,"height":600,"width":800,"src":"\/\/797performance.com\/cdn\/shop\/products\/1cde3aef7adff482b44ff23053f2421a.jpg?v=1721314506"},"aspect_ratio":1.333,"height":600,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/1cde3aef7adff482b44ff23053f2421a.jpg?v=1721314506","width":800},{"alt":null,"id":6909387898954,"position":3,"preview_image":{"aspect_ratio":1.333,"height":600,"width":800,"src":"\/\/797performance.com\/cdn\/shop\/products\/7b091d533d02ae92a2bea63c7e7aa939.jpg?v=1721314508"},"aspect_ratio":1.333,"height":600,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/7b091d533d02ae92a2bea63c7e7aa939.jpg?v=1721314508","width":800},{"alt":null,"id":6909387931722,"position":4,"preview_image":{"aspect_ratio":1.333,"height":600,"width":800,"src":"\/\/797performance.com\/cdn\/shop\/products\/548e03e4dbe24072e7380be2ca38b010.jpg?v=1721314509"},"aspect_ratio":1.333,"height":600,"media_type":"image","src":"\/\/797performance.com\/cdn\/shop\/products\/548e03e4dbe24072e7380be2ca38b010.jpg?v=1721314509","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003eThis is a great sized for charger\/challenger\/300 using the hellcat supercharger conversion. It is a universal part so some work will be required to make use of it. \u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eDual Pass (Cross-flow) Universal Heat Exchanger (CSF#8030) Features\u003c\/strong\u003e:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eOverall Dimensions (Tank\/Tank) 25’L x 7.25’H x 2.5’W (635mmL x 184mmH x 64mmW)\u003c\/li\u003e\n\u003cli\u003e2-row 52mm (Dual Core) featuring\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/csfrace.com\/radiator-technology\/#core\" aria-label=\"(opens in a new tab)\" target=\"_blank\"\u003eCSF’s exclusive B-tube technology\u003c\/a\u003e\n\u003c\/li\u003e\n\u003cli\u003eUltra-efficient multi-louvered fin w\/ 8mm fin height (for proper air flow to other cooling components). Resulting in optimal surface area contact and heat dissipation\u003c\/li\u003e\n\u003cli\u003eDual-Pass structure allows the coolant to flow across the core of the heat exchanger 2 times before exiting the radiator for lowest outlet temperature possible\u003c\/li\u003e\n\u003cli\u003e4 CNC machined mounting points – 2 on each end tank\u003c\/li\u003e\n\u003cli\u003e3\/4 inch inlet\/outlet slip-on hose fittings (19mm)\u003c\/li\u003e\n\u003cli\u003e100% all aluminum TIG welded construction\u003c\/li\u003e\n\u003cli\u003e2 Year limited warranty\u003c\/li\u003e\n\u003cli\u003ePolished to a satin finish\u003c\/li\u003e\n\u003c\/ul\u003e"}

Price:

$350.10 USD

Quantity:

Share this product

This is a great sized for charger/challenger/300 using the hellcat supercharger conversion. It is a universal part so some work will be required to make use of it.

Dual Pass (Cross-flow) Universal Heat Exchanger (CSF#8030) Features:

Overall Dimensions (Tank/Tank) 25’L x 7.25’H x 2.5’W (635mmL x 184mmH x 64mmW)
2-row 52mm (Dual Core) featuring CSF’s exclusive B-tube technology
Ultra-efficient multi-louvered fin w/ 8mm fin height (for proper air flow to other cooling components). Resulting in optimal surface area contact and heat dissipation
Dual-Pass structure allows the coolant to flow across the core of the heat exchanger 2 times before exiting the radiator for lowest outlet temperature possible
4 CNC machined mounting points – 2 on each end tank
3/4 inch inlet/outlet slip-on hose fittings (19mm)
100% all aluminum TIG welded construction
2 Year limited warranty
Polished to a satin finish

CSF Universal Heat Exchanger For Front Mounted Heat Exchanger on Hellcat
