Description
-

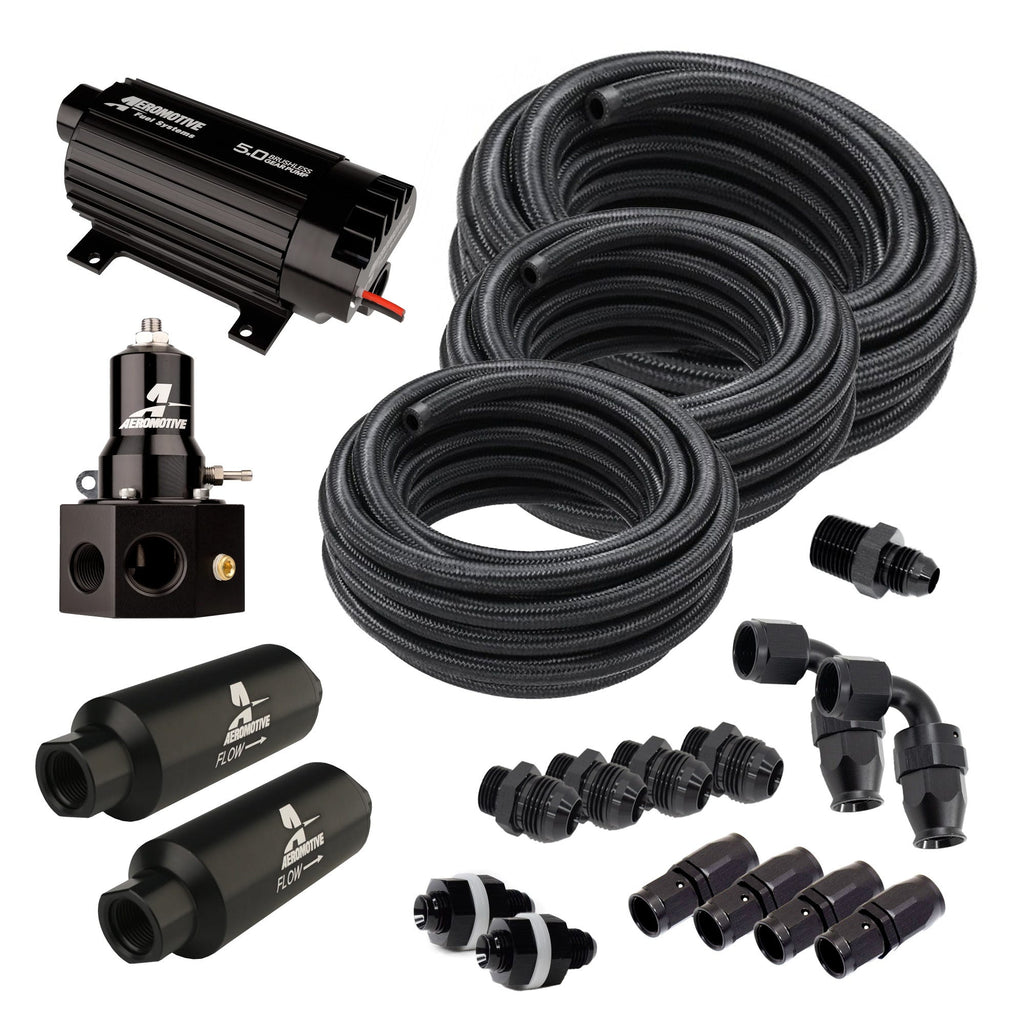

FUEL PUMP:
1 x AEROMOTIVE 5 GPM BRUSHLESS GEAR PUMP - 11186
-
FUEL PRESSURE REGULATOR:
1 x AEROMOTIVE PRO SERIES EFI REGULATOR - 13145
-
PRE-FILTER:
1 x AEROMOTIVE FUEL FILTER -12 INLET/OUTLET- 100 MICRON - AEI-12309
-
POST-FILTER:
1 x AEROMOTIVE-12AN IN-LINE FILTER - 10-MICRON - MICROGLASS - AEI-12341
-
BASE HOSE AND FITTINGS:
1 x BTR FUEL CELL BULKHEAD - 8AN - BLACK - BHK-FC-081 x BTR FUEL CELL BULKHEAD - 12AN - BLACK - BHK-FC-0128 x BTR PTFE AN HOSE - 12AN - HOSE-01-12-PTFE6 x BTR PTFE STRAIGHT HOSE END - 12AN - HF-STR-012-PTFE4 x BTR AN FITTINGS - AN TO ORB ADAPTER - 12 ORB TO -12AN - BLACK - ADPT-02-0131 x BTR AN FITTINGS - AN TO ORB ADAPTER - 10 ORB TO 12AN - AN TO ORB FITTING - BLACK - ADPT-02-0151 x BTR AN FITTING - AN TO ORB ADAPTER - 12 ORB TO 10AN - BLACK - ADPT-02-0121 x BTR Y FITTING - SINGLE 10AN TO DUAL 8AN - BLACK - Y-10-20810 x BTR PTFE AN HOSE - 10AN - HOSE-01-10-PTFE2 x BTR PTFE STRAIGHT HOSE END - 10AN - HF-STR-010-PTFE25 x BTR PTFE AN HOSE - 8AN - HOSE-01-08-PTFE8 x BTR PTFE STRAIGHT HOSE END - 8AN - HF-STR-08-PTFE4 x BTR PTFE 90° HOSE END - 8AN - HF-90-08-PTFE3 x BTR AN FITTINGS - AN TO ORB ADAPTER - 10 ORB TO -8AN - BLACK - ADPT-02-008
BTR 1500HP+ GAS/E85/M1 FUEL SYSTEM
If you're reaching for some serious BTR power, you don't want some mix and match fuel system. We've curated a fantastic fuel system with PTFE BTR plumbing and Aeromotive components to deliver! Starting with Aeromotives' proven 5.0 GPM pump, we've put together a system that will reliably pump gasoline, ethanol from E20-E100 and methanol! (power ratings for different fuels and combinations below).

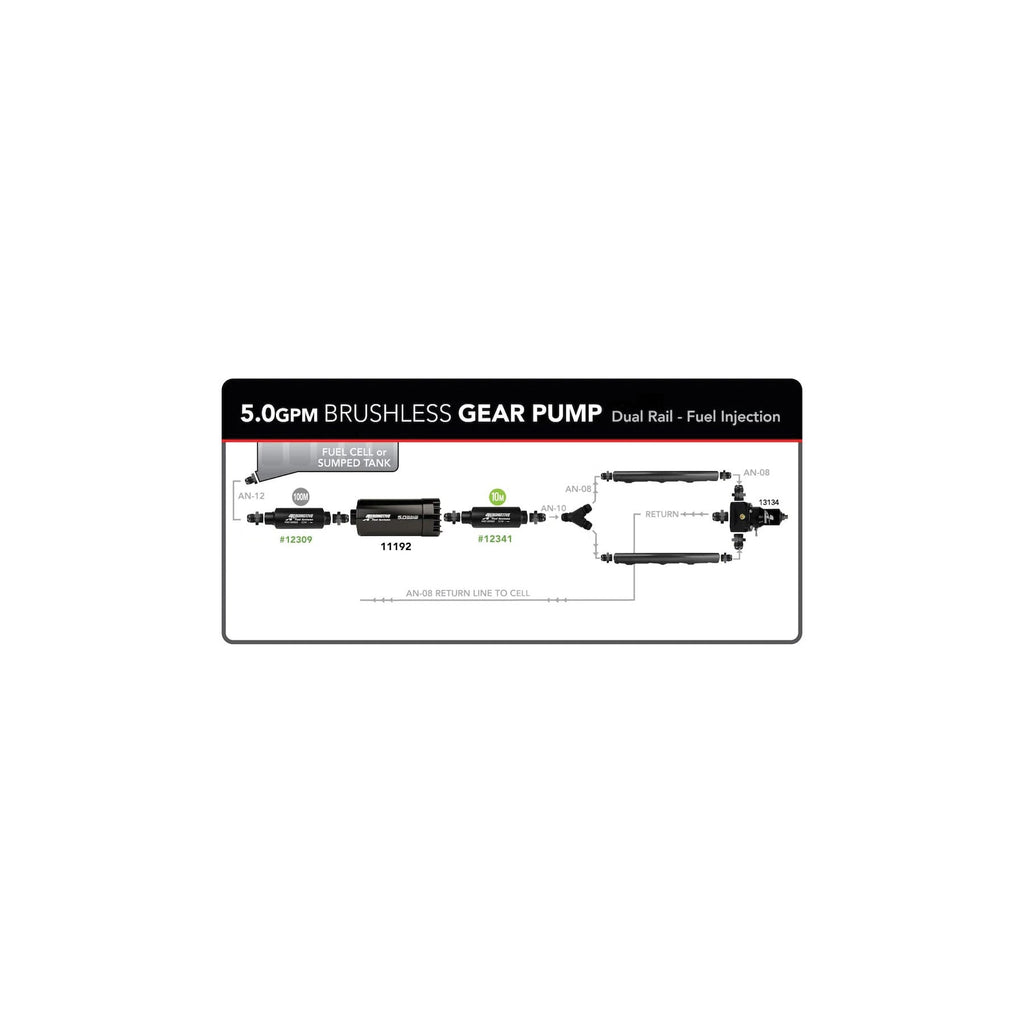

We start with an ample -12AN PTFE lined hose from tank to pre-filter to pump to post-filter, then step-down to -10AN PTFE to the Y-adapter, to -8AN PTFE to plumb between the Y-adapter, rails, regulator and return line. We've included spare hose for all segments and a few spare fittings to make sure you have enough for positioning components in the best places, or fix a quick OOPS!
If you're hooking up to a BTR fuel rail kit, we've even added the rail fittings for both our standard -8AN ORB rails and our high flow -12AN ORB rails!
NOTE: You will need to fabricate an -8AN fuel crossover hose with BTR Intake/rail combinations, or purchase our Gas/Alcohol Compatible crossover fuel rail plumbing kit.
NOTE: External fuel pumps are gravity-fed, you must feed from the bottom of the tank, mounting the pump as close to and under the fuel tank.
Fuel injected engines: GAS
up to 3400 FWHP – naturally aspirated
up to 2600 FWHP – forced air induction
Carbureted engines: GAS
Up to 3600 FWHP – naturally aspirated
Up to 2700 FWHP – forced air induction
Fuel injected engines: E85
up to 2380 FWHP – naturally aspirated
up to 1820 FWHP – forced air induction
Carbureted engines: E85
Up to 2520 FWHP – naturally aspirated
Up to 1890 FWHP – forced air induction
Fuel injected engines: METHANOL
up to 1,190 FWHP – naturally aspirated
up to 910 FWHP – forced air induction
Carbureted engines: METHANOL
Up to 1,260 FWHP – naturally aspirated
Up to 945 FWHP – forced air induction
